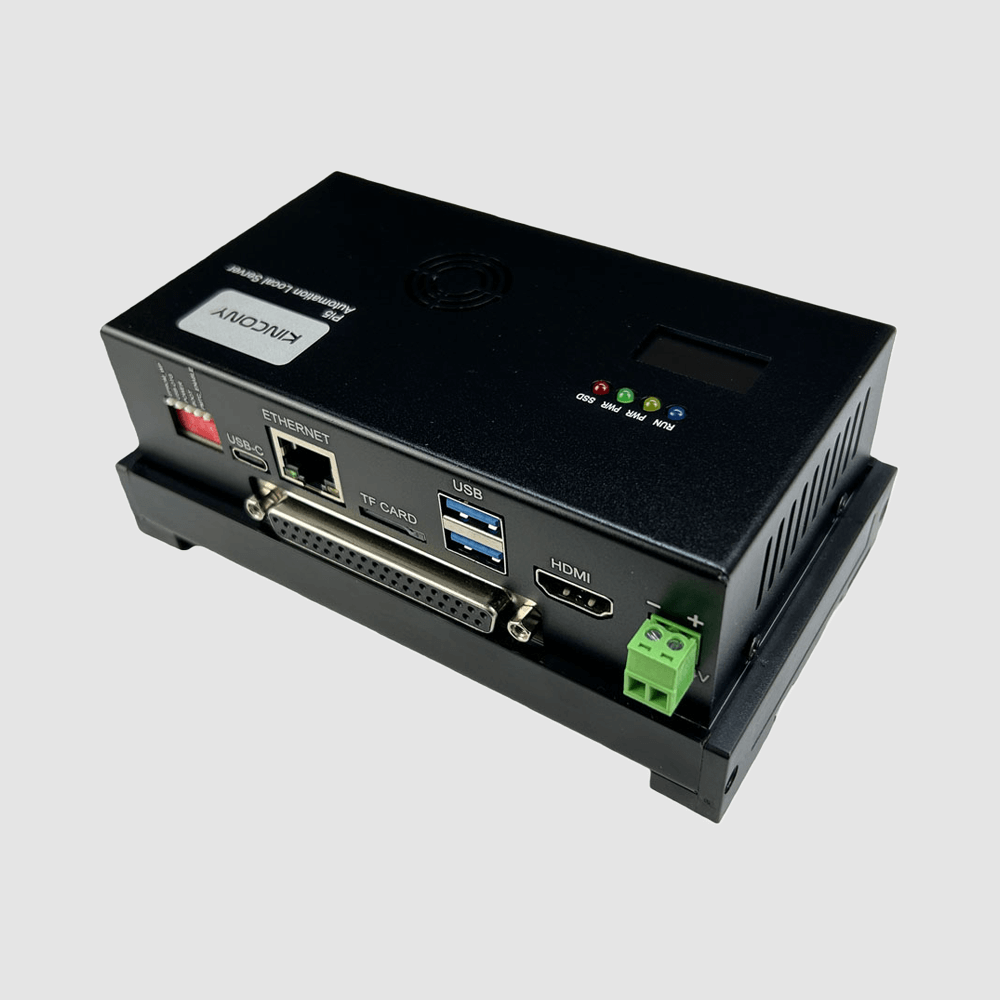

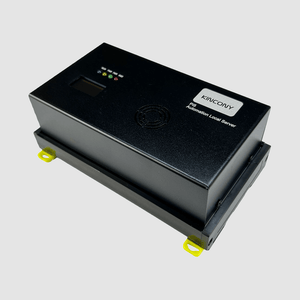

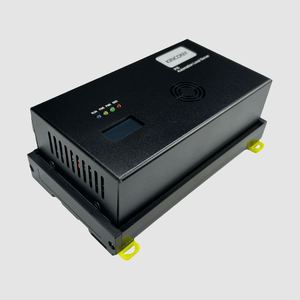

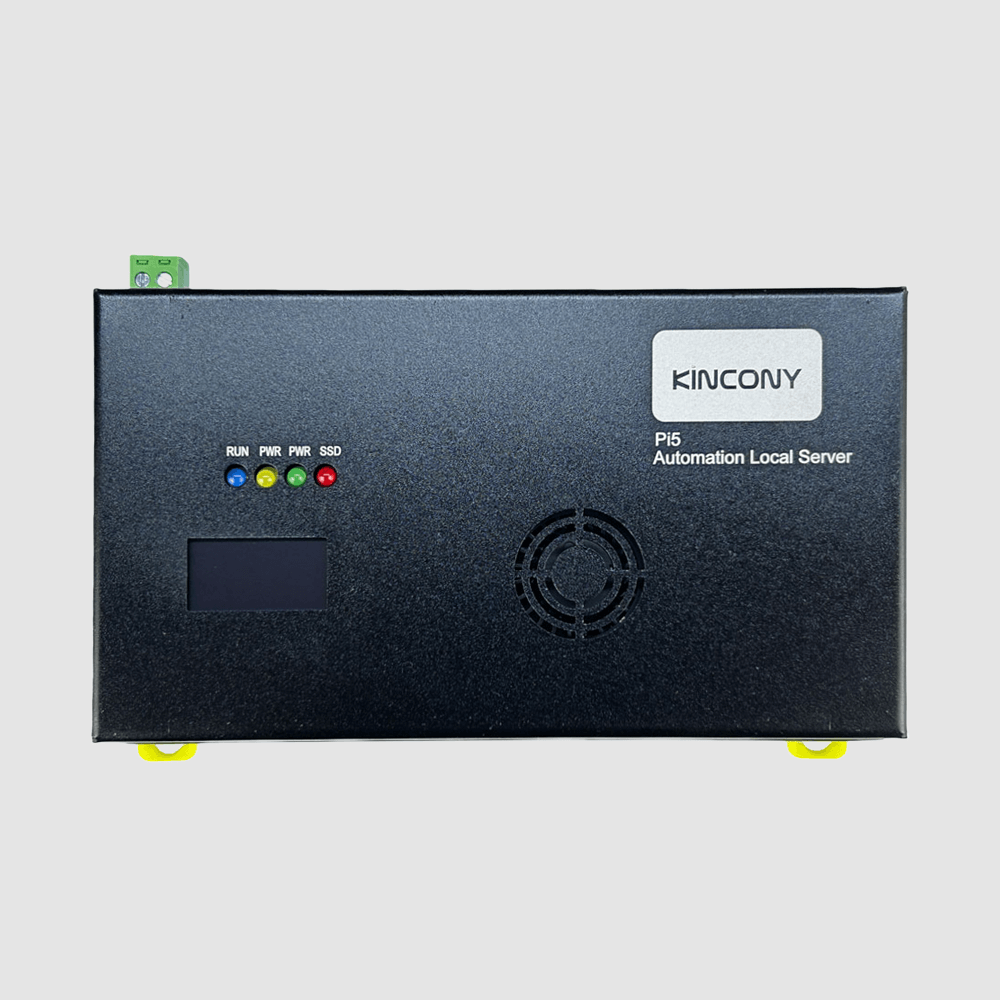

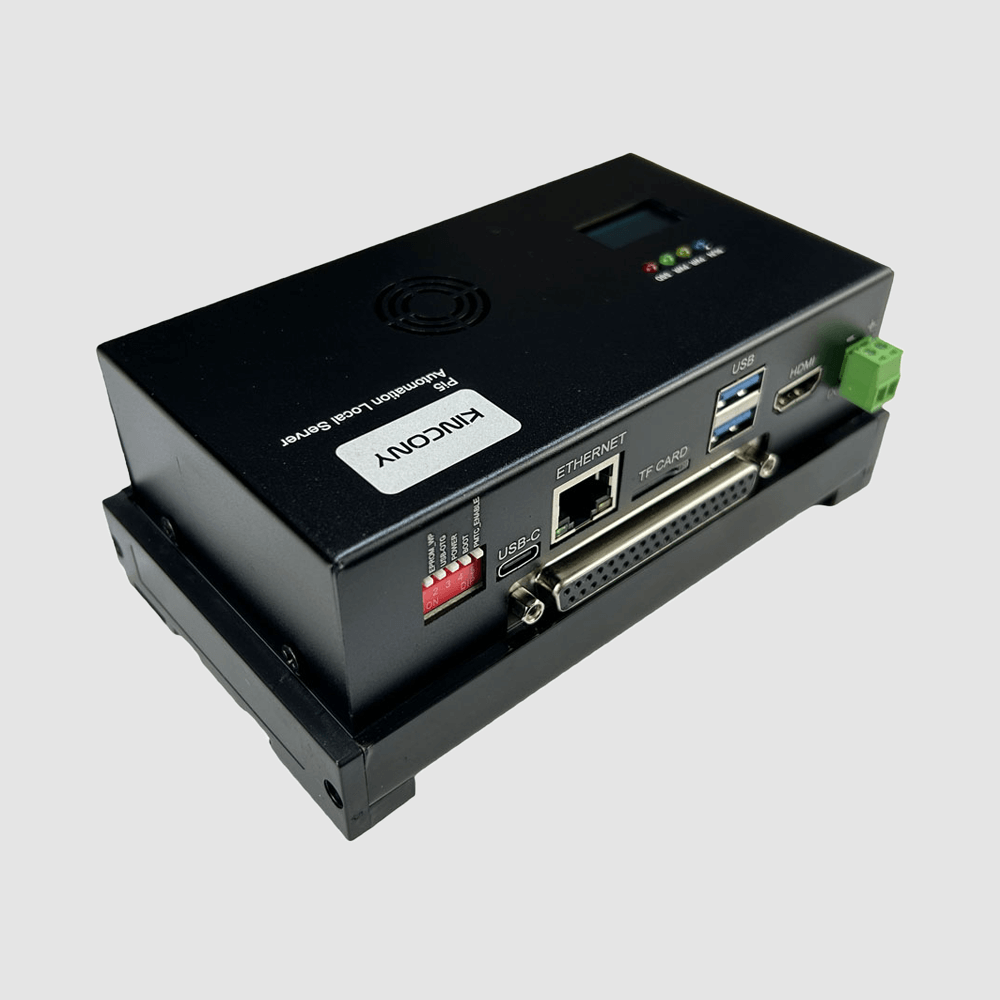

KinCony Pi5 IoT Server (Version 2)
Frequently Bought Together
Build your own powerful local automation server with the Pi5 IoT Server V2. This compact DIN-rail server is built around the Raspberry Pi Compute Module 5, providing a complete Linux computer for smart home automation, industrial control, and IoT applications. Whether you’re running Home Assistant, Node-RED, or custom software, the Pi5 gives you the flexibility and performance you need. As our customers say, this product sits perfectly “somewhere between a home and an industrial solution,” offering the best of both worlds in a professional package.
Why You'll Love This Server
✔ Your Local Automation Hub
Run Home Assistant, Node-RED, or any Linux software locally without monthly fees or cloud dependency. Your data stays in your home.
✔ The Perfect “Middle Ground”
Customers love that this product sits “somewhere between a home and an industrial solution!” It brings the robustness of industrial hardware (DIN-rail, wide power input, fan cooling) to your home automation projects.
✔ Flexible Storage Options
Choose between affordable microSD storage or high-speed NVMe SSDs via the M.2 PCIe socket—perfect for databases and logging applications.
✔ Easy to Expand
The optional GPIO extender lets you connect sensors, relays, and other hardware directly to the server, creating a complete all-in-one automation system.
✔ Complete Control
As a full Linux computer, you have root access to install any software, configure services, and customize your automation setup exactly as you need.
✔ Energy Efficient
Designed for 24/7 operation with low power consumption, making it practical for always-on automation servers.
Among other outstanding features are the following:

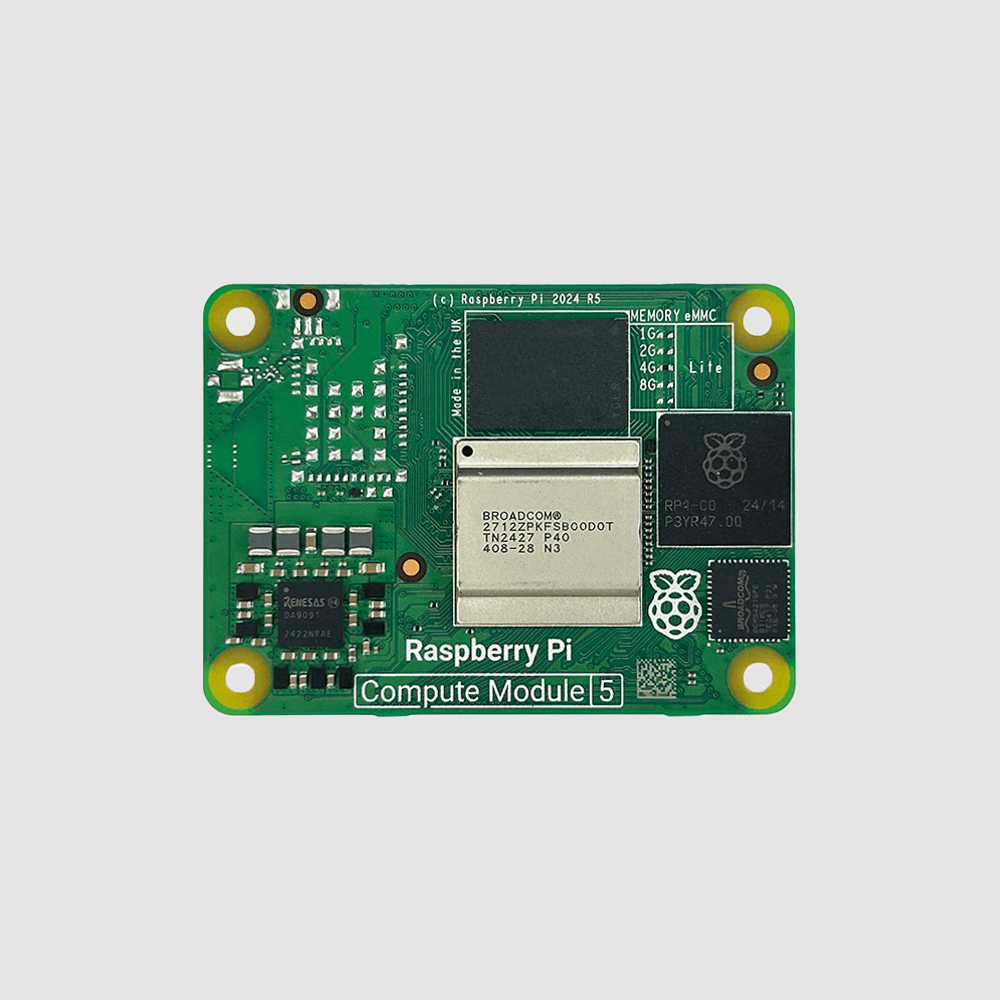

- High-Performance Processing: The Raspberry Pi Compute Module 5 delivers significantly improved CPU performance compared to previous generations, perfect for demanding automation tasks.
- Rich Display Options: Includes a full-size HDMI 2.0 connector for connecting monitors, plus an SSD1306 I2C OLED display for showing system status directly on the device.
- GPIO Extender Support: Optional CM5 GPIO extender allows you to access the Compute Module’s free GPIO pins for custom hardware projects.
- Professional Power Input: Wide-range 12-24V DC power input makes it compatible with standard industrial power supplies and DIN-rail power systems.
- USB-C Interface: Modern USB-C port for power and data, making it easy to connect and configure.
Technical Specifications:
| Category | Specification |
|---|---|
| Operating System | Linux (compatible with Home Assistant, Node-RED, etc., installed by user) |
| Core Processor | Raspberry Pi Compute Module 5 (CM5) ▪ Default: CM5004000 (Broadcom BCM2712 quad-core Cortex-A76, 4GB RAM Lite) |
| Memory | 4GB LPDDR4X (on-module) |
| Networking | ▪ Gigabit Ethernet (RJ45, 10/100/1000 Mbps) ▪ IPv4/IPv6 support |
| Video Output | 1 × full-size HDMI 2.0 port |
| USB Ports | ▪ 2 × USB 3.0 Type-A sockets ▪ 1 × USB-C (power and data) |
| Expansion | ▪ M.2 M key PCIe socket ▪ CM5 GPIO extender (optional accessory) |
| Other I/O | ▪ DIP switch for jumpers ▪ Onboard SSD1306 128×64 OLED display (I²C) |
| Power Supply | 12-24 VDC |
| Dimensions | |
| Mounting | 35 mm DIN rail (EN 60715) |
