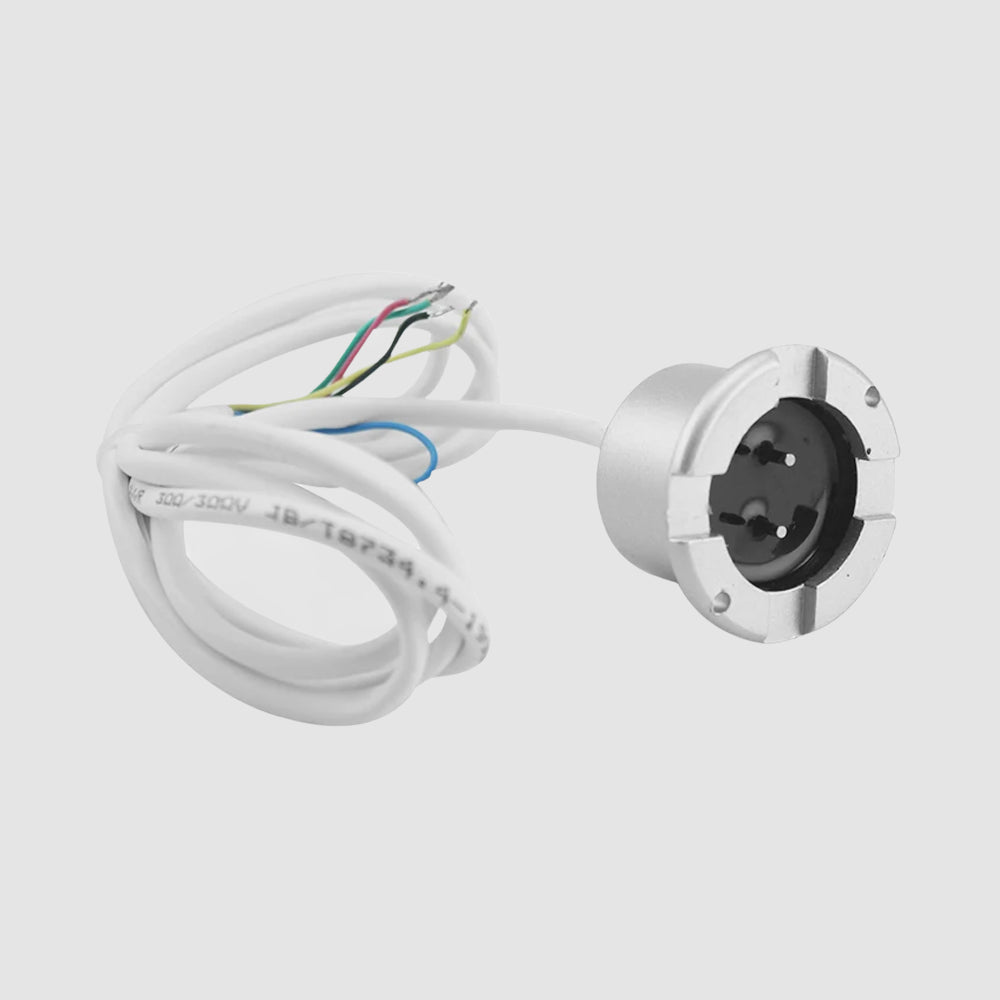

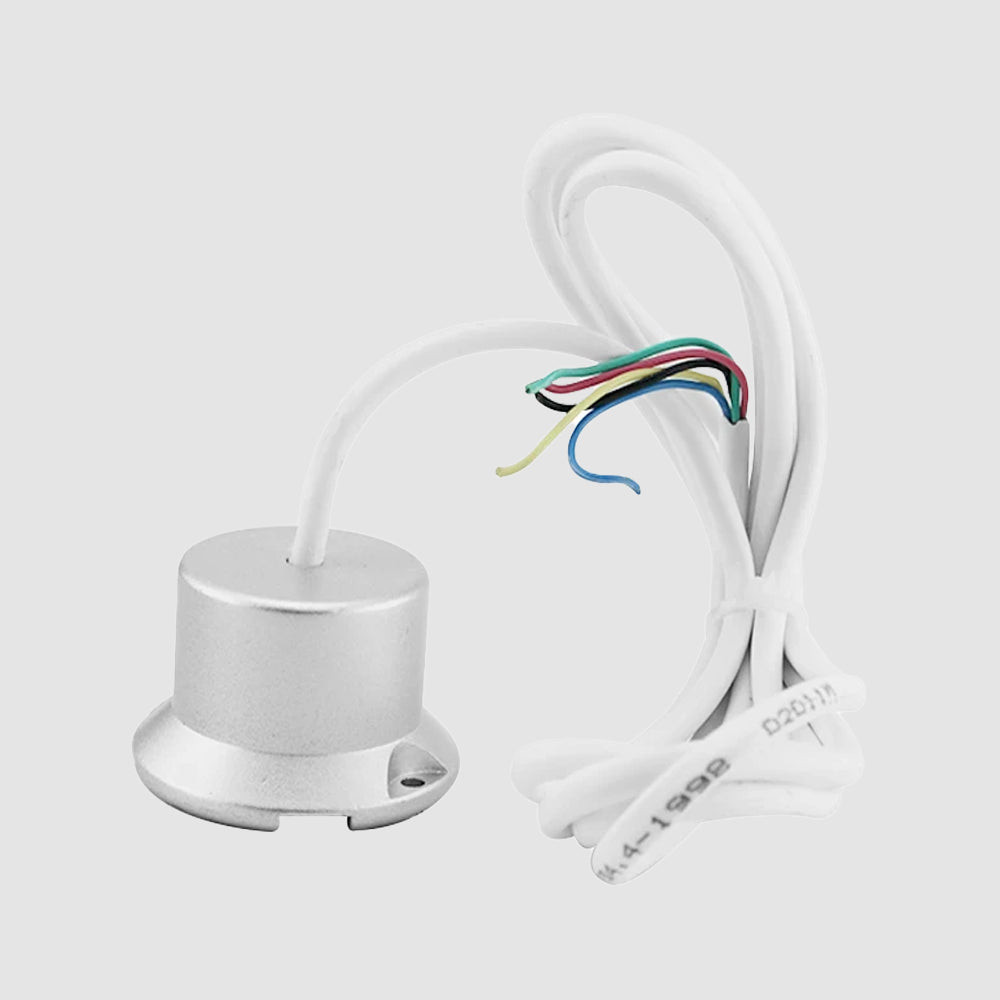

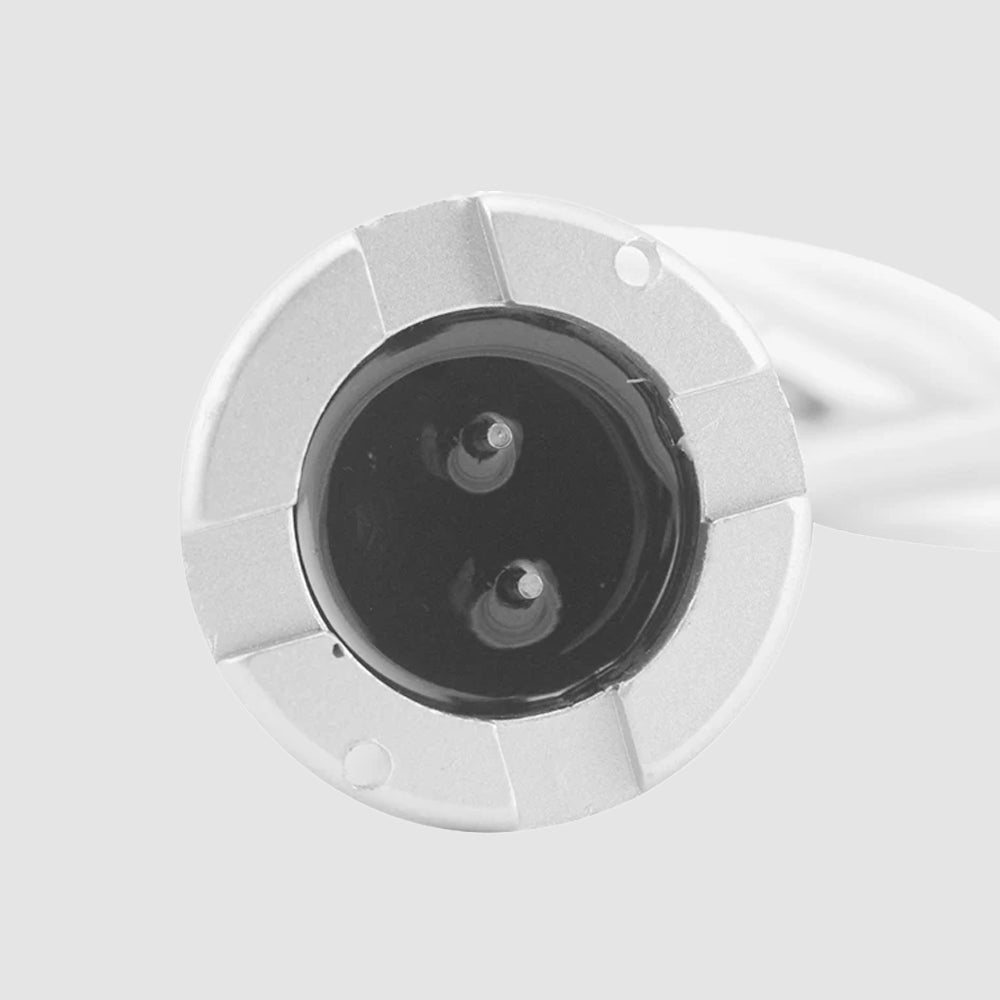

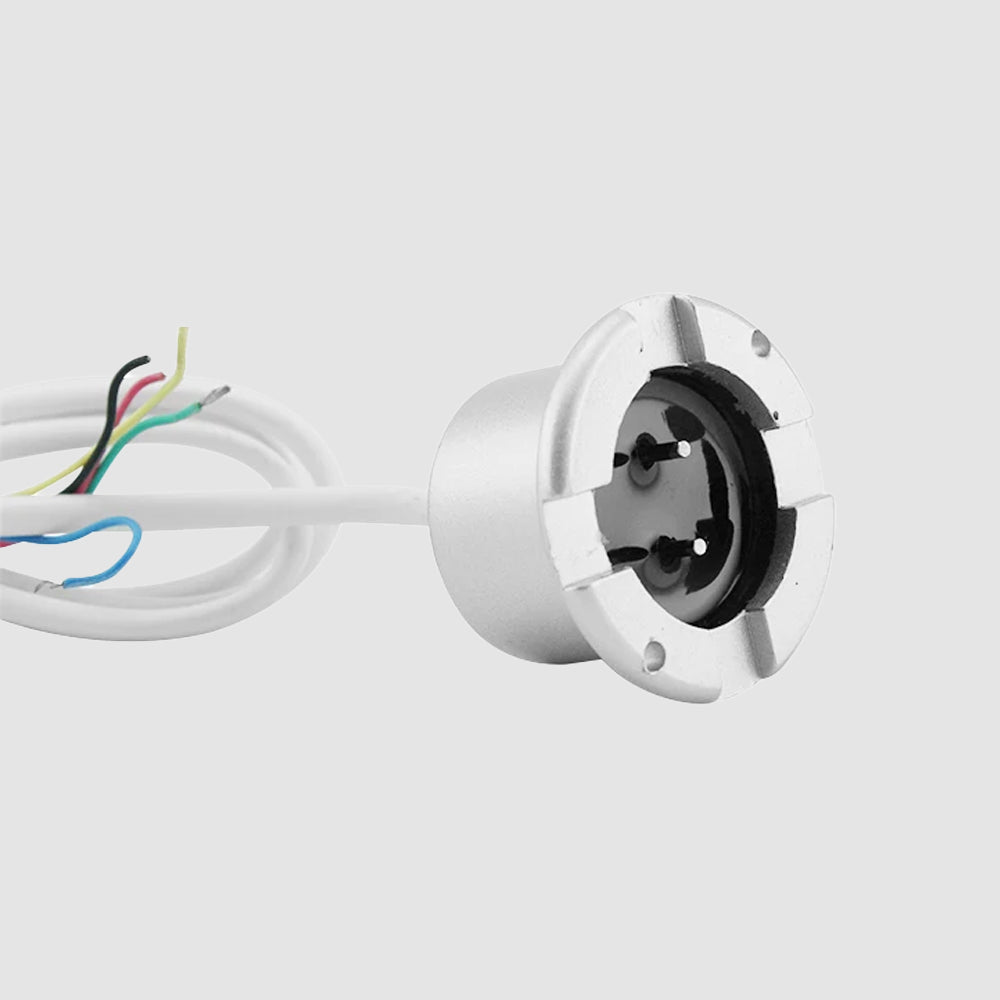

Wired Water Leak Sensor

‌Operating Environment: Temperature: 0℃ ~ 50℃; Humidity: 20% ~ 100% RH, Output Signal: Relay Output (Normally Closed (N/C) or Normally Open (N/O) optional), ‌Power Consumption: Static: <0.3W; Alarm: ≤0.5W, Reliability: False Positive Rate: <100 ppm

Sale price $19.00

Product Parameters:

  • Operating voltage: 12v/DC
  • Operating temperature: 0 ℃ ~ 50 ℃
  • Output form: Relay N/C, or N/O optional
  • Static power consumption: < 0.3w
  • Alarm power consumption: ≤ 0.5w
  • Operating humidity: 20%~100%RH
  • False positive rate: < 100ppm
  • Configuration: Standard 35lm probe cable

Terminals

  • Red: Working power 12v/DC; positive pole
  • Black: Working power 12v/DC; negative pole
  • Yellow: N/O or N/C with J1 set output form, N/O as default ,no polarity difference
  • Green: No water, the two terminals resistance infinitely large, no polarity dif
