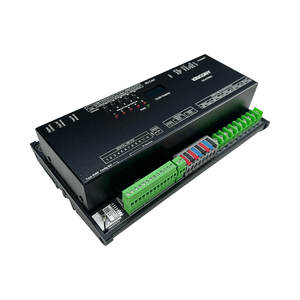

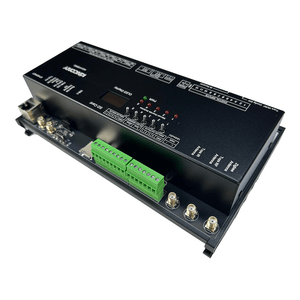

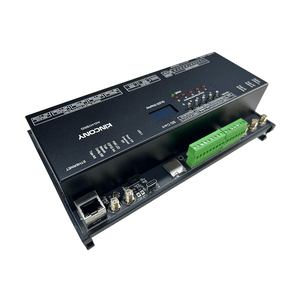

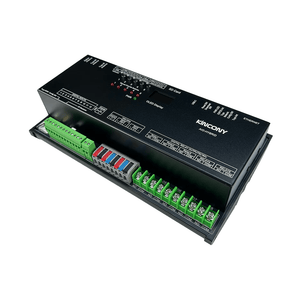

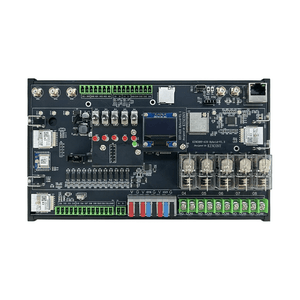

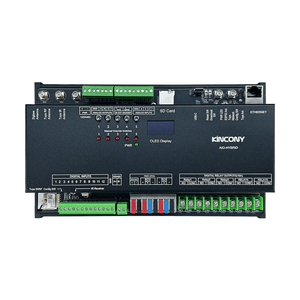

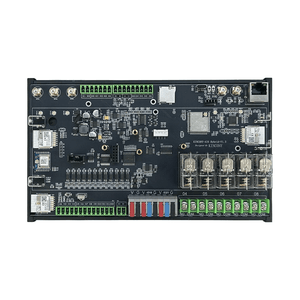

If you want a single board that handles relay switching, analog dimming, IR blasting, RF wireless, Zigbee, and multi-network connectivity all at once — the KinCony AIO Hybrid is exactly that. Built on the ESP32-S3 and designed for DIN rail installation, this controller packs a surprisingly complete feature set into one compact enclosure. It works great for smart home builds, light commercial automation, or any project where you need a lot of I/O without wiring together multiple separate modules.

Why You'll Love This Controller

✔ Complete All-in-One Solution
Relay switching, 0-10V dimming, IR/RF control, Zigbee coordination, analog sensing, and data logging — all in one DIN rail module. No extra boards required for most projects.

✔ Works With the Tools You Already Use
Whether you prefer the Tuya app for quick smartphone control, Home Assistant for local automations, ESPHome for YAML-based configuration, or Tasmota for open-source flexibility — the AIO Hybrid supports all of them out of the box.

✔ IR and RF Without Add-Ons
Built-in IR and RF 433MHz capability means you can replace physical remotes and integrate legacy wireless devices without adding external modules.

✔ Zigbee Hub Built In
The onboard Zigbee module lets you build a full smart home ecosystem around this one controller — sensors, switches, and other Zigbee 3.0 devices connect directly.

✔ Your Project, Your Code
Full access to Arduino IDE, MicroPython, and ESP-IDF means you can write completely custom firmware. KinCony provides demo code for common use cases to get you started faster.

✔ Reliable When It Matters
Optically isolated digital inputs protect the board from electrical noise on long cable runs, and the five manual override buttons keep things working even when software or network issues arise.

Among other outstanding features are the following:

• Dual-Network Connectivity: Equipped with both Wi-Fi and 100Mbps Ethernet (IPv4/IPv6), plus Bluetooth, so it fits into virtually any network environment.

• Precise Timekeeping: The onboard DS3231 RTC chip keeps accurate time even through power interruptions or network outages, making scheduled automations reliable.

• SD Card Storage: A built-in SD card slot over SPI lets you log sensor data, store configuration files, or cache firmware updates locally.

• Multi-Protocol Support: Works with HTTP, MQTT, TCP, RS485 Modbus, and the Tuya app — plus IFTTT-style local automation through KCS firmware, without needing an internet connection.

• OLED Status Display: The SSD1306 OLED screen shows the current Wi-Fi IP address, Ethernet IP address, and Tuya cloud connection status at a glance — handy during setup and for quick field checks.

• Free GPIO Pins: Two exposed GPIO channels connect directly to the ESP32S3, giving you flexibility to add custom sensors, LED strips (including WS2812B addressable LEDs), or other peripherals.

Technical Specifications:
