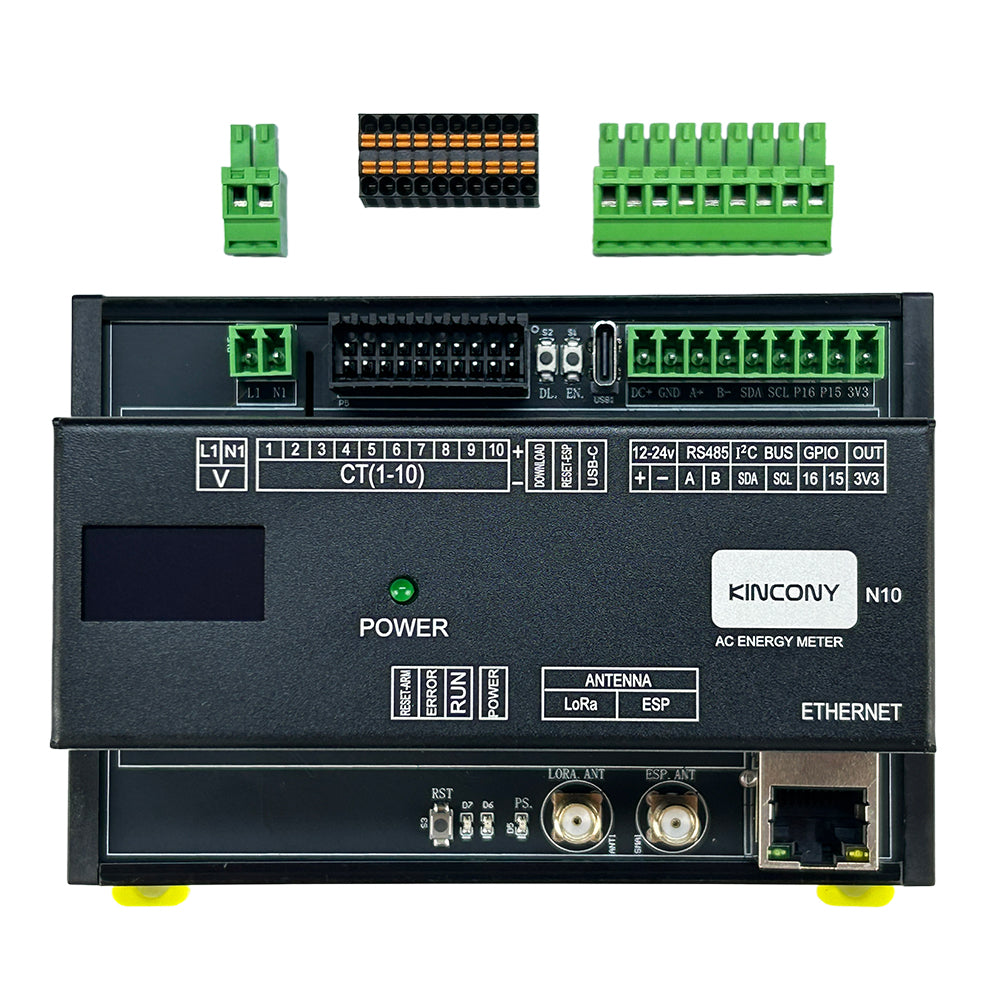

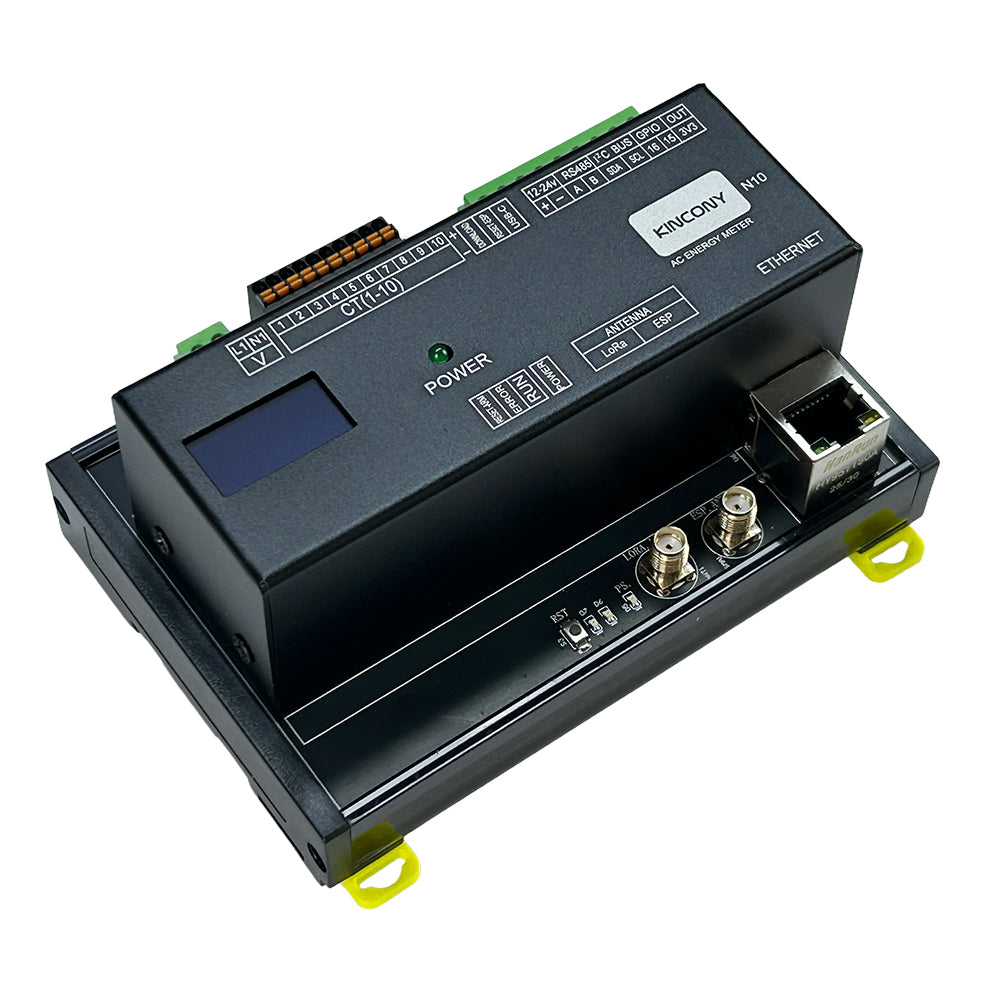

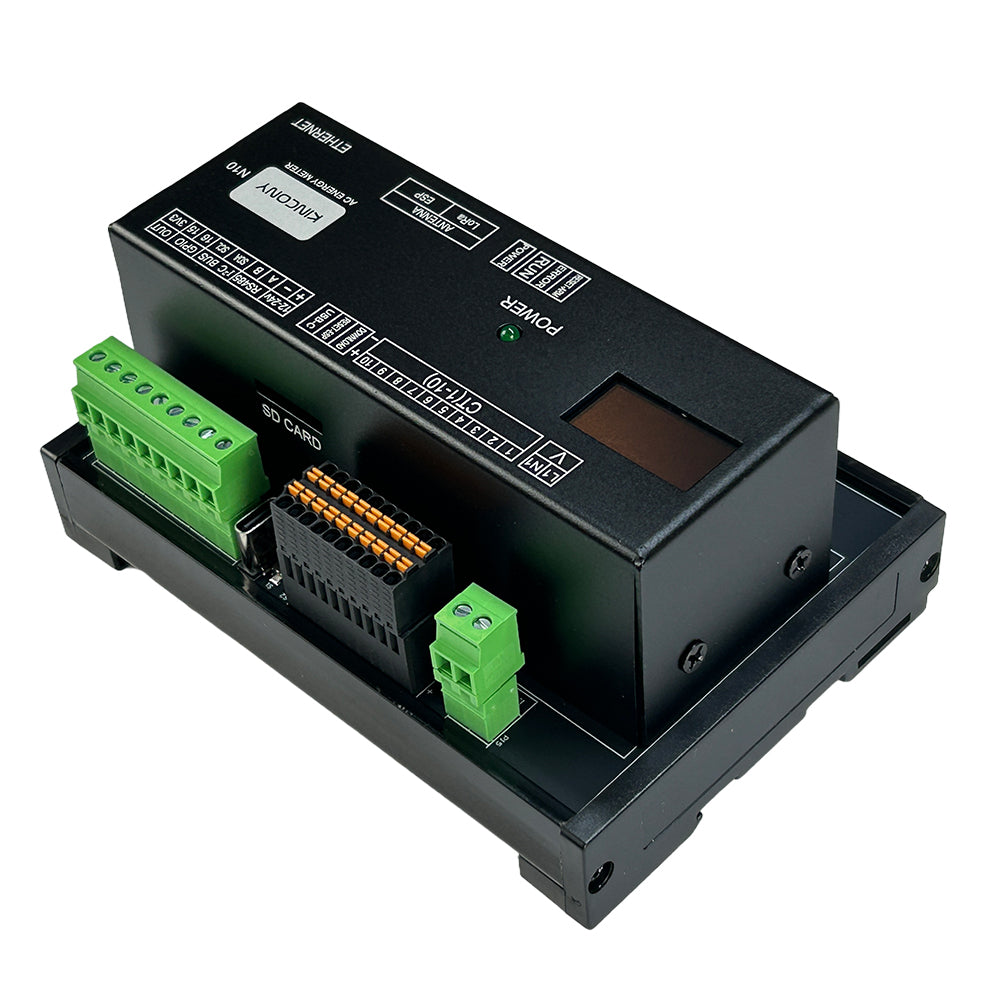

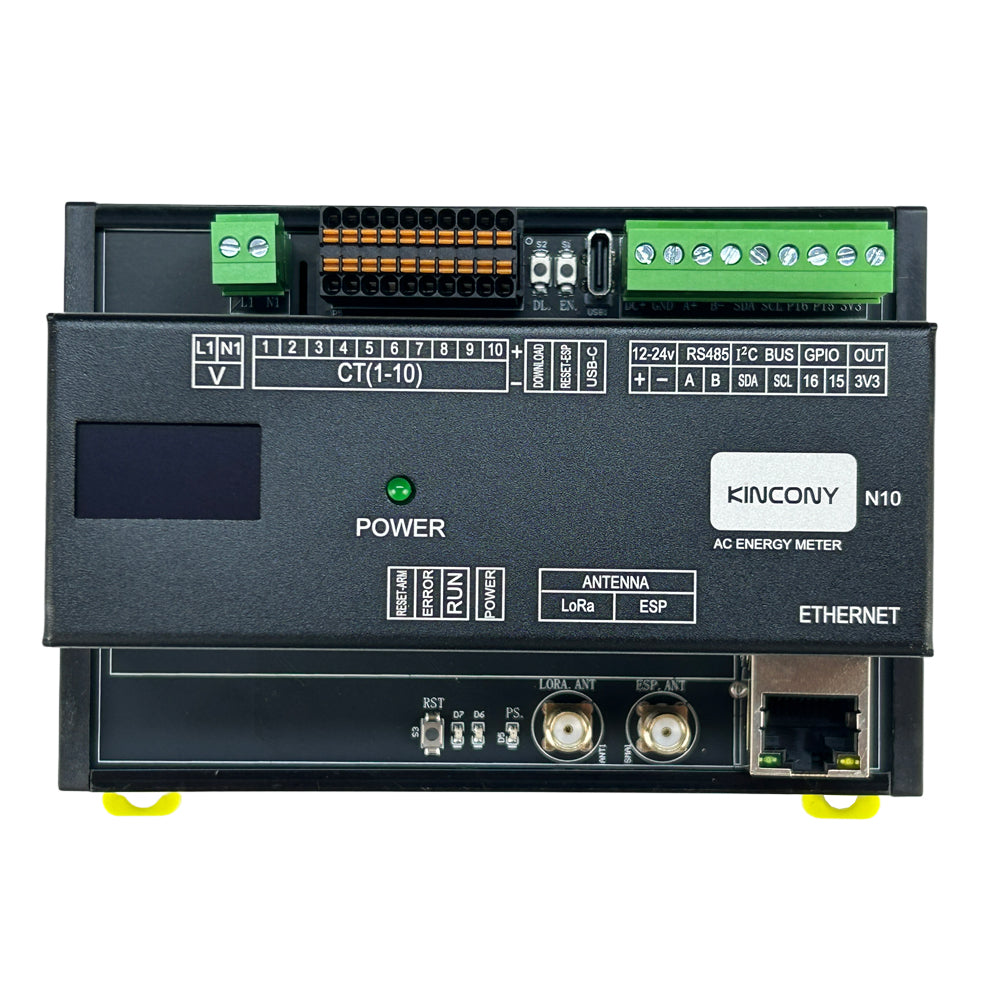

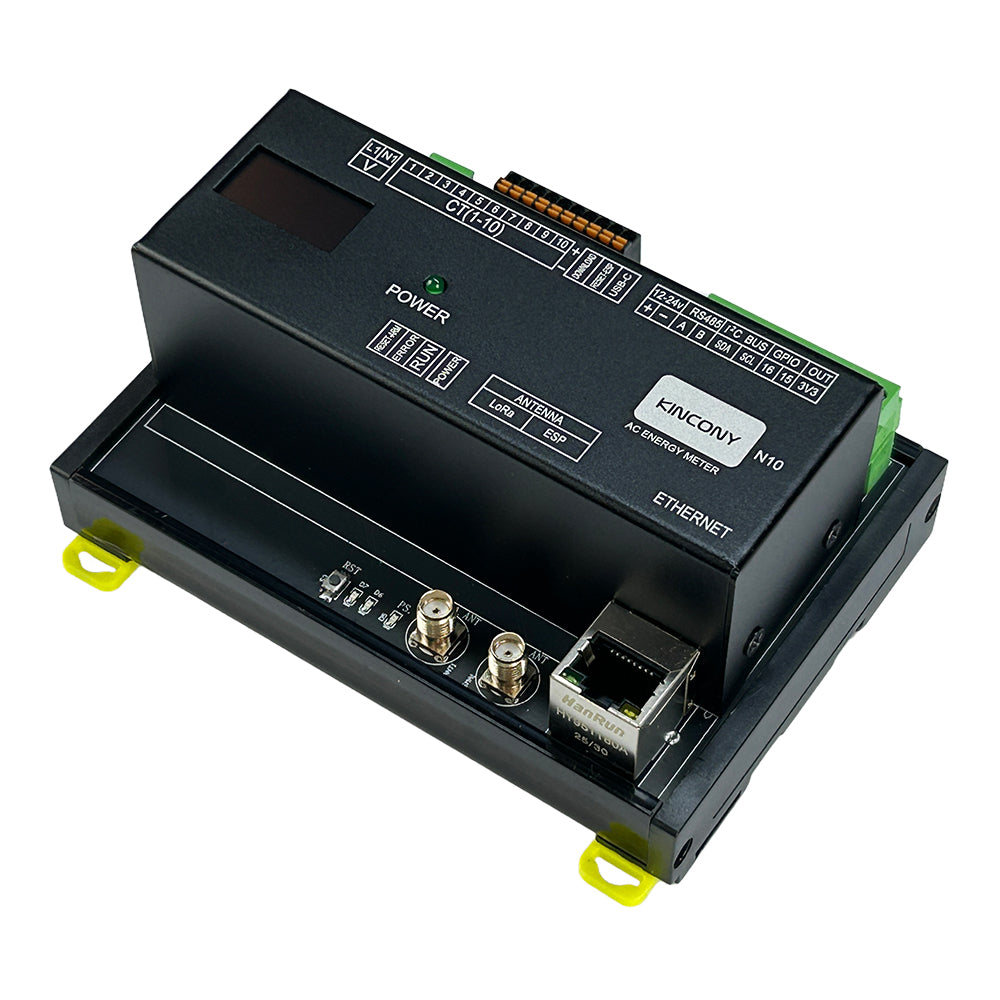

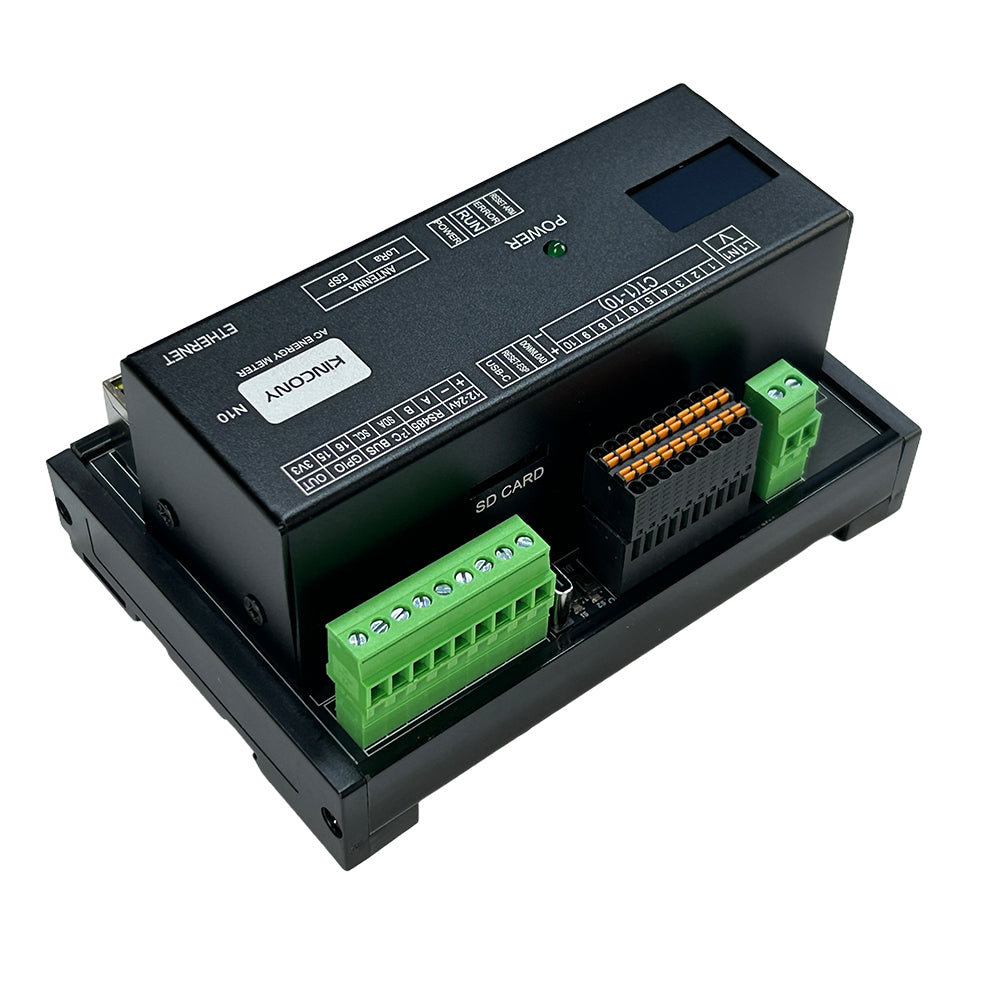

KinCony N10 10-Channel AC Energy Meter (LoRa®-Enabled)
Frequently Bought Together
Start your journey to smarter energy management. The KinCony N10 is the essential, entry-point smart energy monitor designed to bring professional-grade circuit-level insights to your home or small business. Powered by the ESP32-S3 and high-precision BL0910 metering ICs, it monitors 10 individual AC circuits plus overall voltage. With built-in LoRa® for wireless networking, local SD card data logging, and full smart home integration, the N10 transforms complex energy consumption into clear, actionable data for efficiency and control.
Why You'll Love This Energy Meter
✔ Achieve Professional Insights at an Entry Point:
Move beyond guessing your energy use. The N10 delivers the same high-accuracy, circuit-level monitoring found in larger professional units, making advanced energy analytics accessible and affordable.
✔ Guarantee Data Security with Local Storage:
Your detailed energy history is saved directly to the onboard SD card in a universal Excel format. This ensures you own your data, it's always accessible, and is preserved through any internet or cloud service interruption.
✔ Build or Join a Flexible Wireless Network:
The integrated LoRa module allows you to create a private, long-range, low-power wireless network for energy data, perfect for sending readings from a detached garage, outbuilding, or other areas with poor Wi-Fi coverage.
✔ Plug-and-Play with Your Smart Home:
Works seamlessly with major platforms. Integrate effortlessly into Home Assistant via MQTT auto-discovery (zero configuration), connect to Apple HomeKit for Siri control, or use the feature-rich KCS v3 firmware for local automation rules and cloud dashboards.
✔ A Foundation for Custom Energy Projects:
The open programming environment (Arduino IDE, MicroPython, ESP-IDF) turns the N10 into a development platform. Create custom alerts, build unique efficiency dashboards, or integrate energy data directly into your own applications.
Among other outstanding features are the following:
-
Targeted 10-Channel Monitoring: Perfectly sized for tracking key circuits like HVAC, major appliances, or workshop equipment, providing clear visibility into your primary energy consumers.
-
High-Accuracy Measurement Core: Utilizes the industrial-grade BL0910 energy metering IC with 2000:1 CT clamps for reliable, professional-grade data on voltage, current, power, and energy consumption.
-
Data Resilience & Ownership: Features non-volatile flash to retain total energy data and an SD card slot to autonomously log detailed hourly consumption reports in Excel format-your data, stored locally and securely.
-
Versatile Connectivity Suite: Offers multiple integration paths: Wi-Fi and Ethernet for network data, LoRa for long-range wireless networks, and RS-485 for industrial communication protocols.
-
Modern Platform with Expansion: Built on the powerful ESP32-S3 platform with an I2C extender and free GPIOs, ready to add temperature sensors, humidity monitors, or even a 4G module for remote access.
Technology Specifications:
| Category | Specification |
|---|---|
| Core Processor | ESP32-S3-WROOM-1U (N16R8, dual‑core 32‑bit Xtensa LX7) |
| AC Measurement | Current: 10 Channels (via external CT clamps, 2000:1 ratio) Voltage: 1 Channel (0-380 VAC, via ZMPT101B) Metering IC: BL0910 (high accuracy) ▪ supported measurements: Vrms, Irms, active power, power factor, frequency |
| Data Logging | Storage: microSD card socket Backup: Internal flash (retains data on power loss) |
| Wireless Connectivity | ▪ Wi‑Fi 2.4 GHz (802.11 b/g/n) ▪ Bluetooth 5.0 (BLE) ▪ LoRa® |
| Wired Connectivity | ▪ Ethernet: 100M RJ45 (IPv4/IPv6) ▪ RS‑485 (Modbus RTU) ▪ USB‑C (power/programming) ▪ I²C (expansion) |
| Firmware Features | KCS v3 Firmware: ▪ Home Assistant auto-discovery via MQTT (zero‑code integration) ▪ KinCony Cloud Service (2 years free for official customers) ▪ Remote monitoring & control via web ▪ Loxone Miniserver integration ▪ Apple HomeKit support (Siri control) |
| Power Supply | 12-24 VDC |
| Dimensions | 122 × 83 × 60 mm |

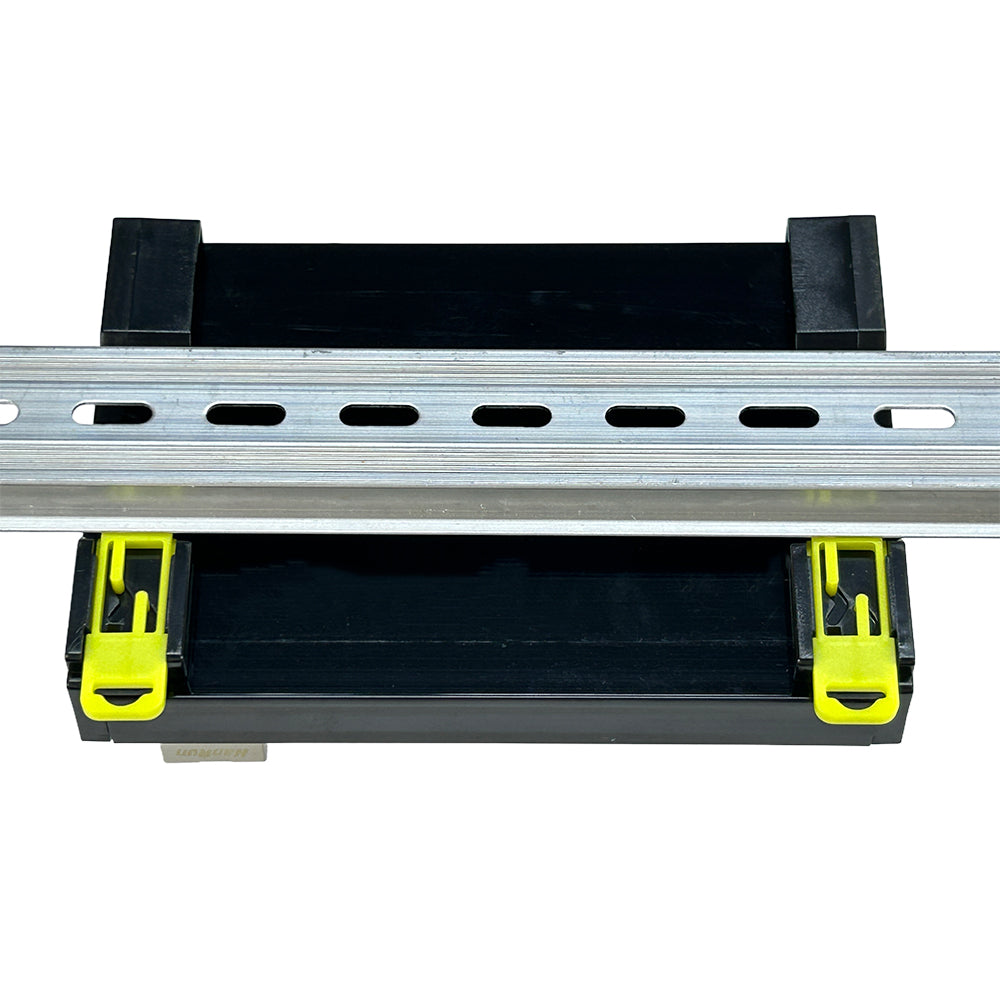

| Mounting | 35 mm DIN rail (EN 60715) |
I. Firmware Options & Features
| Solution | Ideal For | Key Advantages |
|---|---|---|
| 1. KCS Firmware (Recommended) | Beginners / Zero-Code Users |
✔ Auto-detects Home Assistant via MQTT (zero config) ✔ Works with Tuya App + Alexa/Google Voice Control ✔ Local IFTTT automation (no internet needed) ✔ 2-year free KinCony Cloud (official store only) ✔ Apple HomeKit support for Siri ✔ Supports Loxone Miniserver integration ✔ Multi-protocol: HTTP, MQTT, TCP, RS485 Modbus |
| 2. ESPHome Firmware | Home Assistant Enthusiasts |
✔ Full open-source customization ✔ Official ESPHome device support for N10 ✔ Web UI + deep HA integration ✔ Full YAML examples available |
| 3. Tasmota Firmware | Open-Source Community |
✔ Massive plugin ecosystem ✔ MQTT / Web control + rule engine |
| 4. Arduino / ESP-IDF Custom Code | Developers |
✔ Full Arduino demos provided ✔ Supports MicroPython / ESP-IDF |
| 5. Hybrid Setup (Best Practice) | Advanced Users | Tuya App (remote via internet) + Home Assistant (local via LAN) — Security + convenience |
II. Technical Resources
Direct links to pin definitions, ESPHome configurations, Arduino demo source codes, and KCS firmware. All open-source and maintained on GitHub.
| Resource | Link |
|---|---|
| KCS Firmware | kcs_firmware/N10/ |
| Pin Definitions | N10_pin_definition.md |
| Arduino Demos | N10/ (examples) |
| ESPHome Configuration | Official ESPHome N10 device page |
III. Getting Started Guide
Step 1: Flash Firmware
We recommend using the Online Flasher — no driver installation required, works entirely in your browser. Alternatively, follow the Quick Start Guide for manual flashing with the ESP32 desktop tool.
Step 2: Connect & Configure
Power on the board, connect via Ethernet or Wi-Fi, and access the web configuration interface. For detailed configuration, see the KCS Firmware User Guide.
Step 3: Integrate
Enable MQTT auto-discovery in Home Assistant, or pair with Tuya App for voice control.
IV. Video Tutorial: How to Flash KCS Online
No Drivers Needed, No Complex Setup—Flash Directly within Your Browser in 1 Minute!
