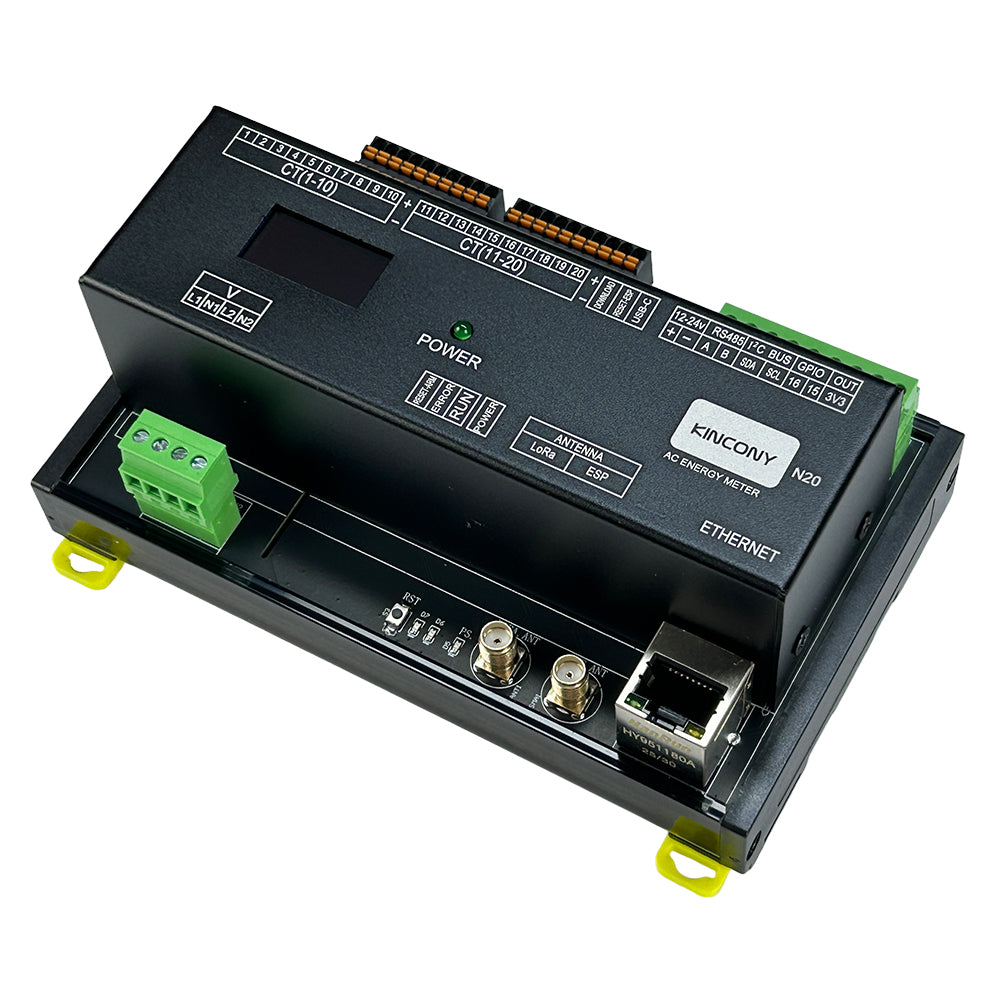

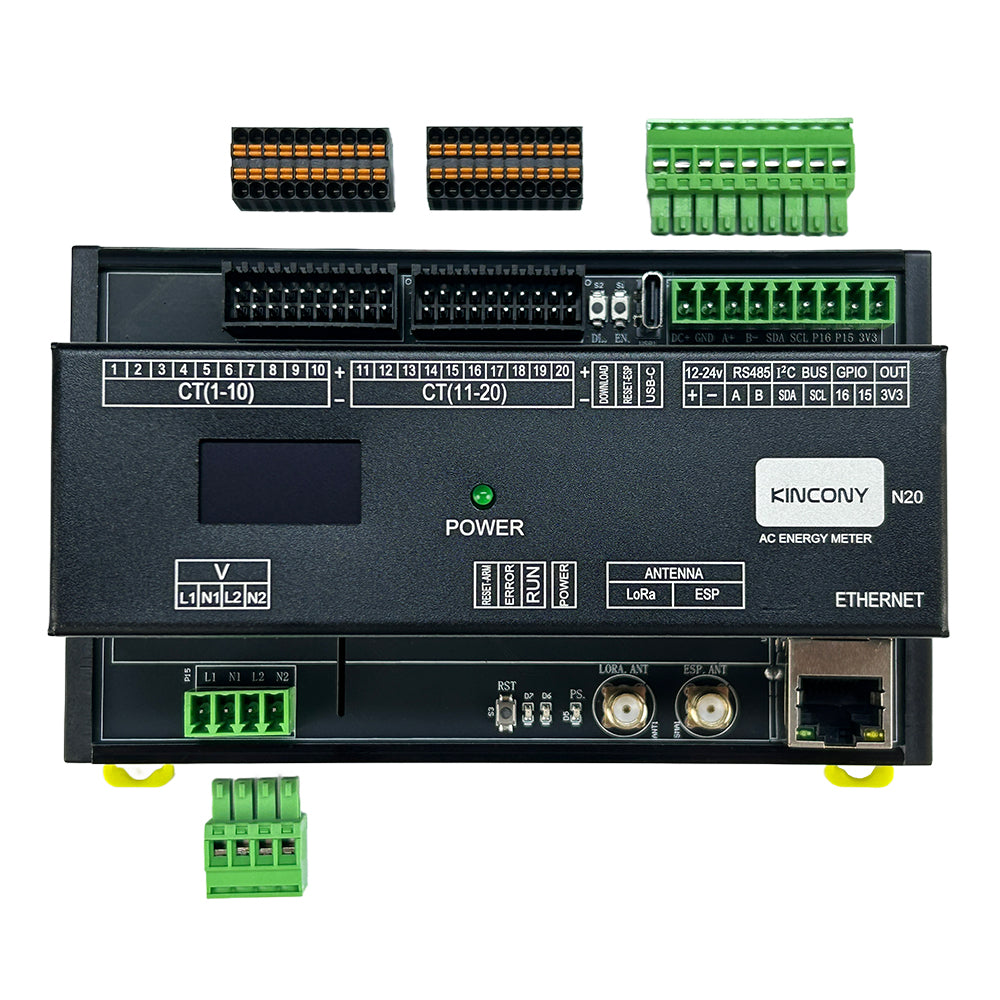

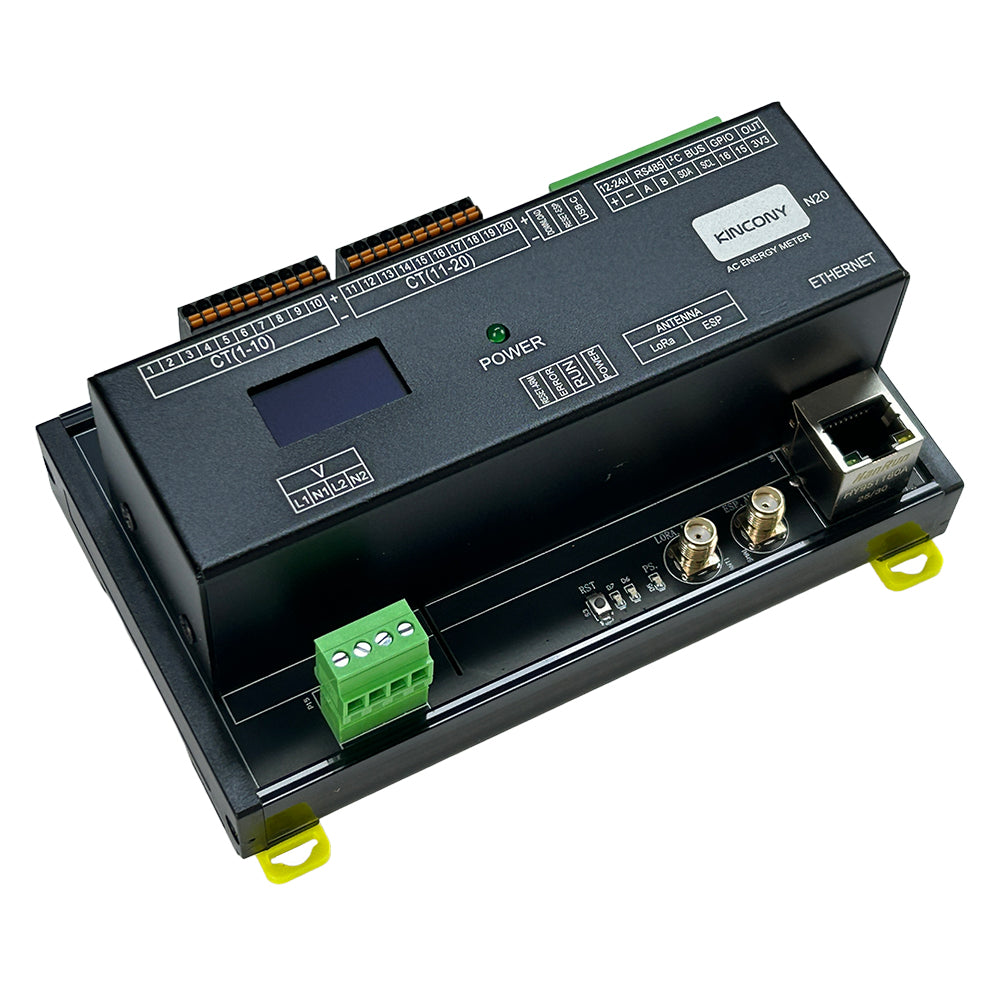

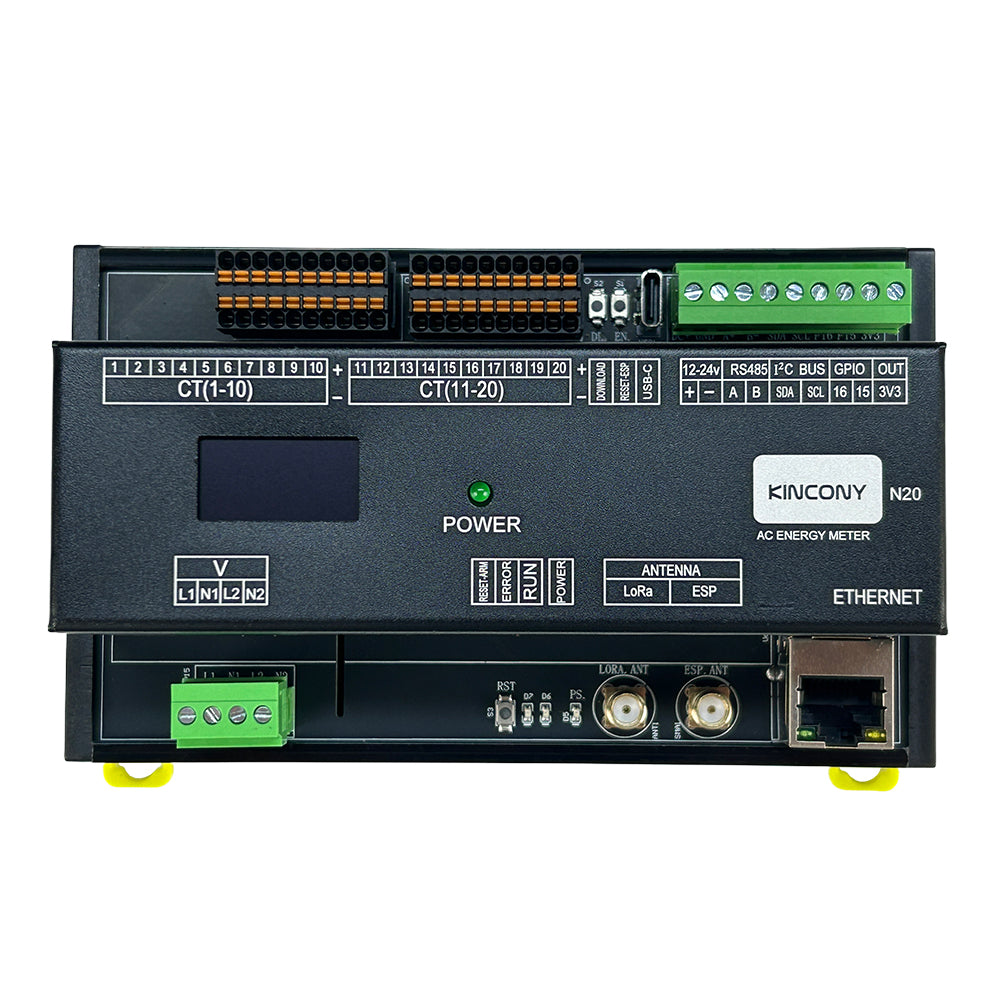

KinCony N20 20-Channel AC Energy Meter (LoRa®-Enabled)

Regular price $140.00 Sale price $126.00
Why Choose:
✔ Professional Energy Analytics – Circuit‑level accuracy at entry cost
✔ Local Data Ownership – Excel logs on SD card, no internet required
✔ Long‑Range LoRa – Private wireless network for remote areas
✔ Smart Home Ready – Plug‑and‑play with HA, HomeKit, KCS v3
✔ Open Development – Arduino, MicroPython, ESP‑IDF ready

Frequently Bought Together

KinCony N20 20-Channel AC Energy Meter (LoRa®-Enabled)
+
Current Transformer CT work with Energy Monitor
+
CT Clamp Sensor SCT013G
+
Type-C USB Cable
+
AC  Adapter
AC  Adapter
This item: KinCony N20 20-Channel AC Energy Meter (LoRa®-Enabled) -
Regular price $140.00 Sale price $126.00
Current Transformer CT work with Energy Monitor
Current Transformer CT work with Energy Monitor -
Sale price $5.00
CT Clamp Sensor SCT013G
CT Clamp Sensor SCT013G -
Sale price $5.00
Type-C USB Cable
Type-C USB Cable -
Sale price $3.50
AC  Adapter
AC Adapter -
Sale price $6.50
Price for all:
Regular total price $160.00 Sale total price $146.00

Start your journey to smarter energy management. The KinCony N20 is the essential, entry-point smart energy monitor designed to bring professional-grade circuit-level insights to your home or small business. Powered by the ESP32-S3 and high-precision BL0910 metering ICs, it monitors 20 individual AC circuits plus overall voltage. With built-in LoRa® for wireless networking, local SD card data logging, and full smart home integration, the N20 transforms complex energy consumption into clear, actionable data for efficiency and control.



Why You'll Love This Energy Meter



✔ Achieve Professional Insights at an Entry Point:
Move beyond guessing your energy use. The N20 delivers the same high-accuracy, circuit-level monitoring found in larger professional units, making advanced energy analytics accessible and affordable.

✔ Guarantee Data Security with Local Storage:
Your detailed energy history is saved directly to the onboard SD card in a universal Excel format. This ensures you own your data, it's always accessible, and is preserved through any internet or cloud service interruption.

✔ Build or Join a Flexible Wireless Network:
The integrated LoRa module allows you to create a private, long-range, low-power wireless network for energy data, perfect for sending readings from a detached garage, outbuilding, or other areas with poor Wi-Fi coverage.

✔ Plug-and-Play with Your Smart Home:
Works seamlessly with major platforms. Integrate effortlessly into Home Assistant via MQTT auto-discovery (zero configuration), connect to Apple HomeKit for Siri control, or use the feature-rich KCS v3 firmware for local automation rules and cloud dashboards.

✔ A Foundation for Custom Energy Projects:
The open programming environment (Arduino IDE, MicroPython, ESP-IDF) turns the N20 into a development platform. Create custom alerts, build unique efficiency dashboards, or integrate energy data directly into your own applications.



Among other outstanding features are the following:



  • Targeted 20-Channel Monitoring: Perfectly sized for tracking key circuits like HVAC, major appliances, or workshop equipment, providing clear visibility into your primary energy consumers.

  • High-Accuracy Measurement Core: Utilizes the industrial-grade BL0910 energy metering IC with 2000:1 CT clamps for reliable, professional-grade data on voltage, current, power, and energy consumption.

  • Data Resilience & Ownership: Features non-volatile flash to retain total energy data and an SD card slot to autonomously log detailed hourly consumption reports in Excel format-your data, stored locally and securely.

  • Versatile Connectivity Suite: Offers multiple integration paths: Wi-Fi and Ethernet for network data, LoRa for long-range wireless networks, and RS-485 for industrial communication protocols.

  • Modern Platform with Expansion: Built on the powerful ESP32-S3 platform with an I2C extender and free GPIOs, ready to add temperature sensors, humidity monitors, or even a 4G module for remote access.



Technology Specifications:



Category Specification

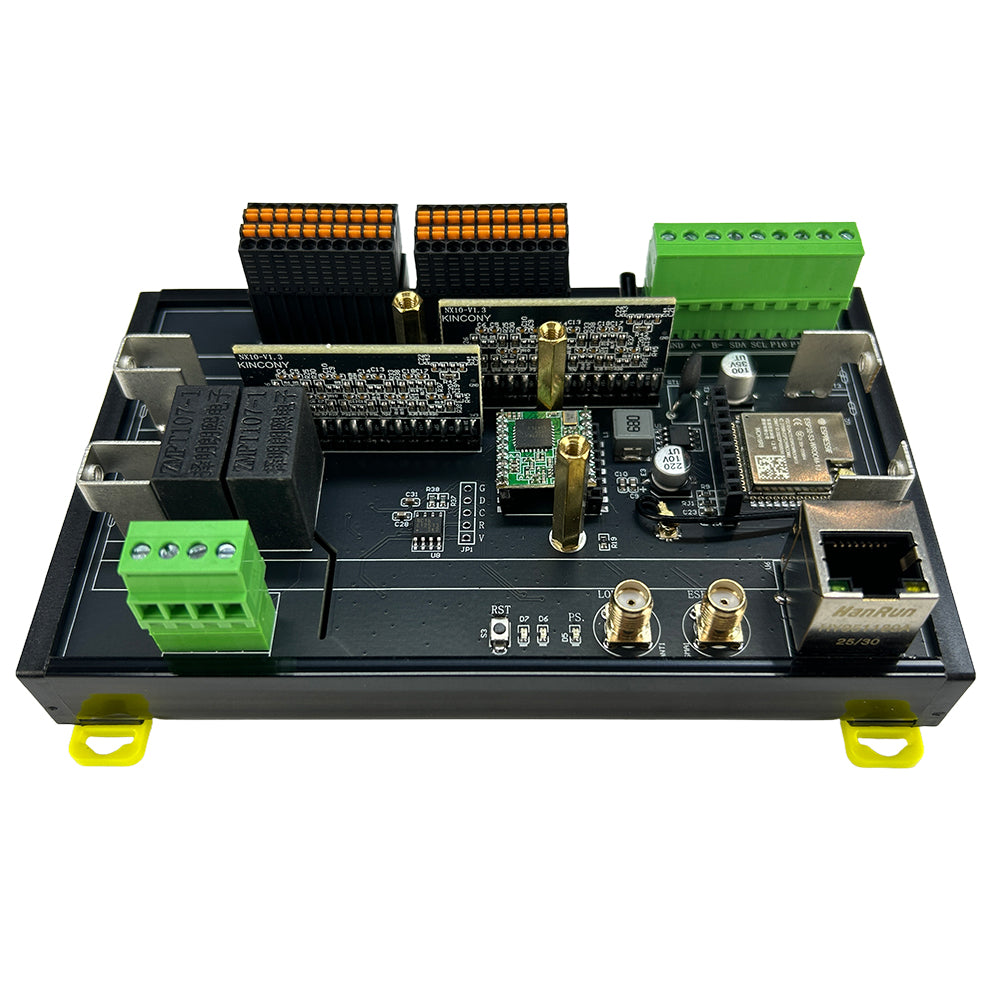

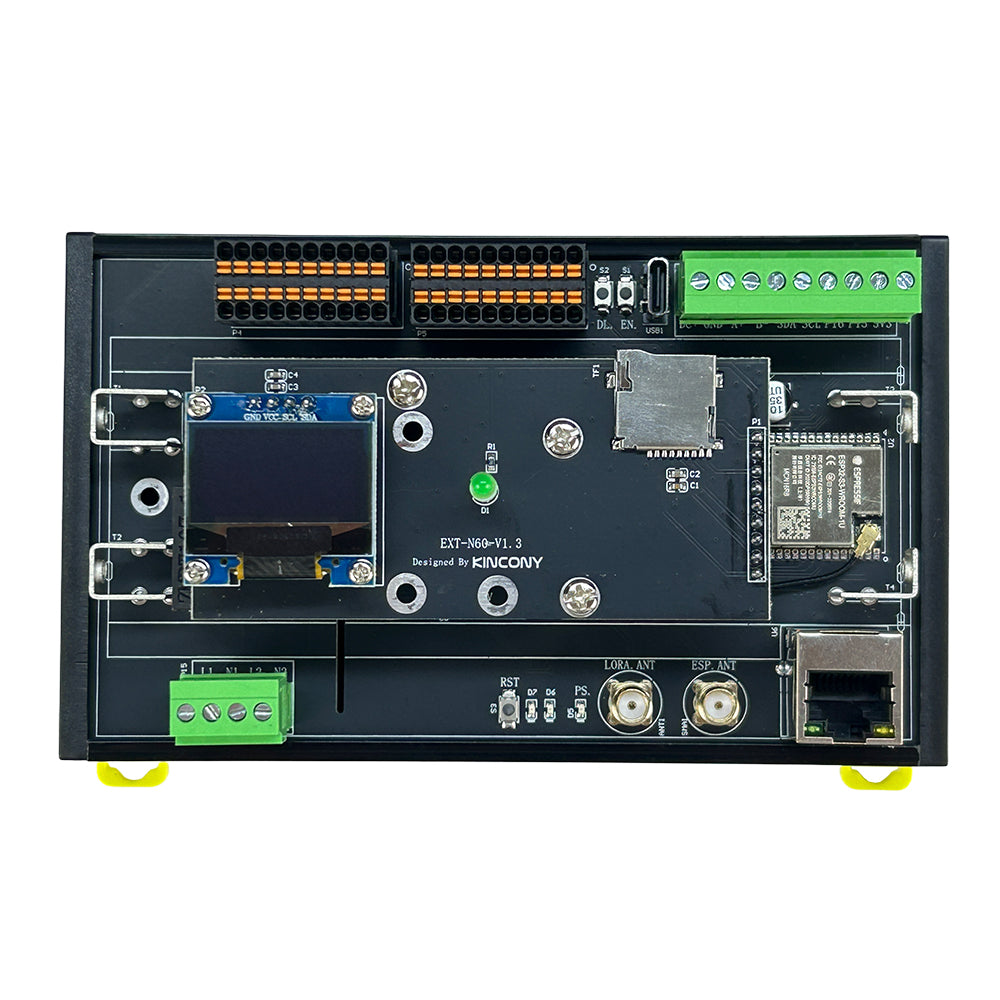

Core Processor ESP32-S3-WROOM-1U (N16R8, dual‑core 32‑bit Xtensa LX7)
AC Measurement Current: 20 Channels (via external CT clamps, 2000:1 ratio)
Voltage: 2 Channels (0-380 VAC, via ZMPT101B)
Metering IC: BL0910 (high accuracy)
▪ supported measurements: Vrms, Irms, active power, power factor, frequency

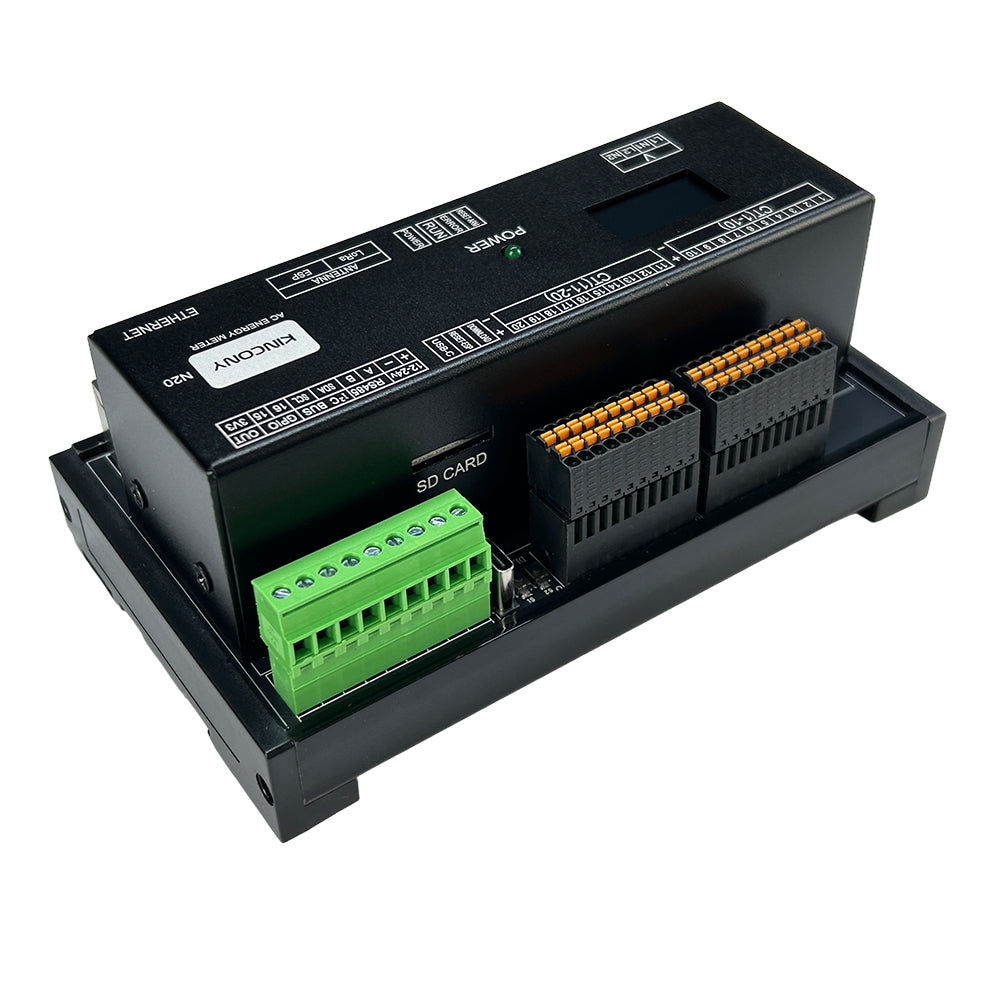

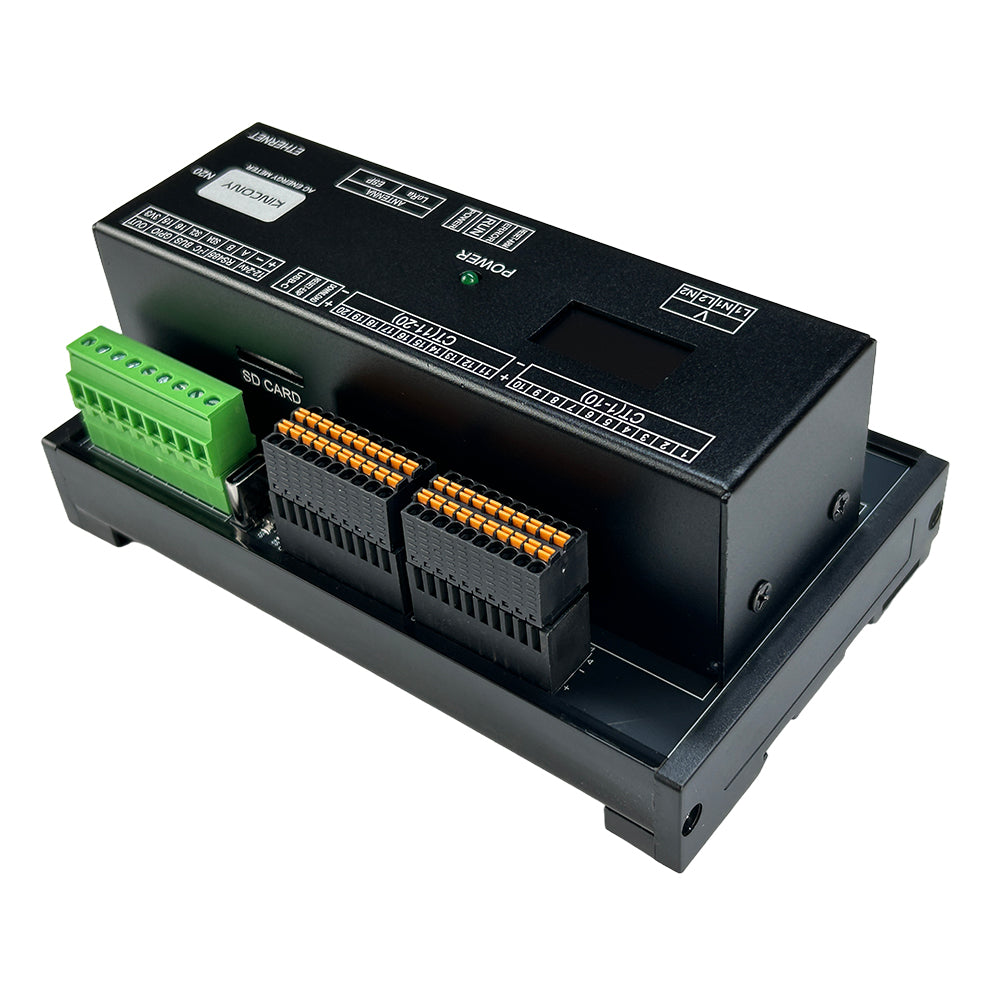

Data Logging Storage: microSD card socket
Backup: Internal flash (retains data on power loss)
Wireless Connectivity ▪ Wi‑Fi 2.4 GHz (802.11 b/g/n)
▪ Bluetooth 5.0 (BLE)
▪ LoRa®
Wired Connectivity ▪ Ethernet: 100M RJ45 (IPv4/IPv6)
▪ RS‑485 (Modbus RTU)
▪ USB‑C (power/programming)
▪ I²C (expansion)
Firmware Features KCS v3 Firmware:
▪ Home Assistant auto-discovery via MQTT (zero‑code integration)
▪ KinCony Cloud Service (2 years free for official customers)
▪ Remote monitoring & control via web
▪ Loxone Miniserver integration
▪ Apple HomeKit support (Siri control)
Power Supply 12-24 VDC
Dimensions 140 × 83 × 60 mm

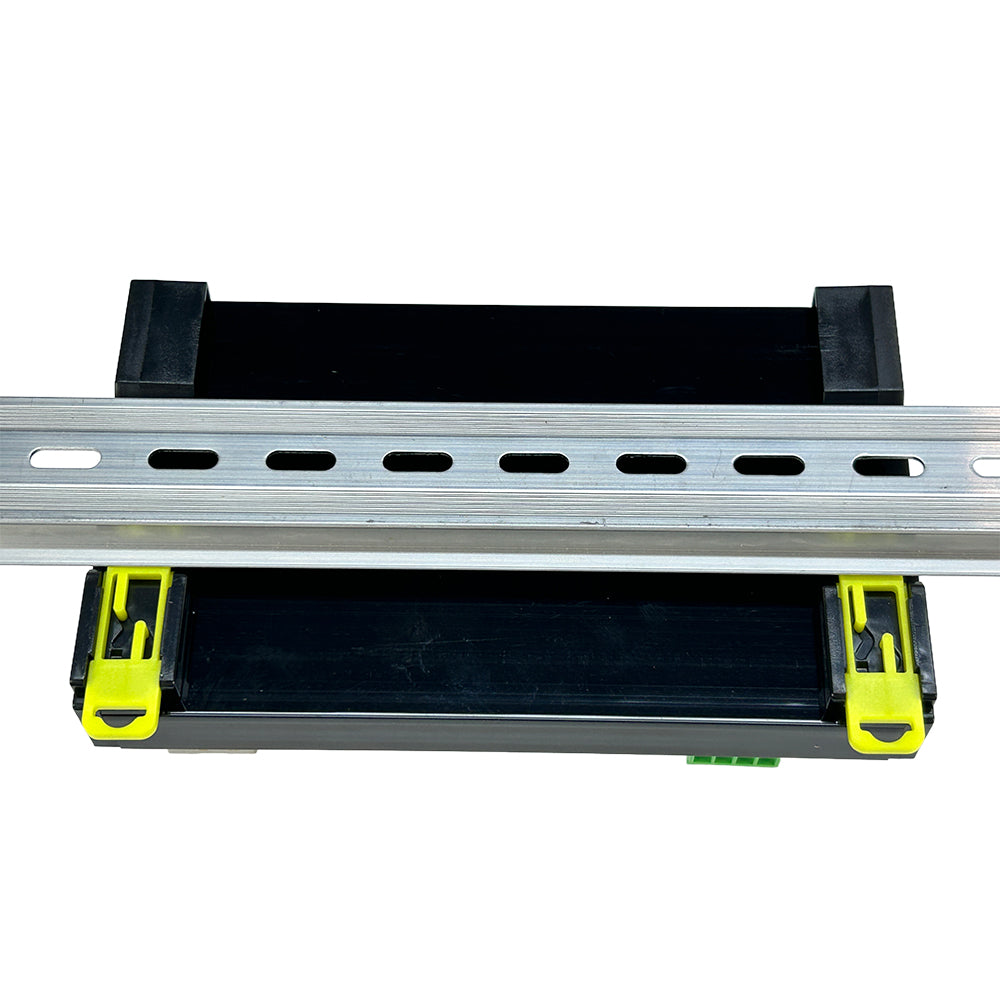

Mounting 35 mm DIN rail (EN 60715)

I. Firmware Options & Features

Solution Ideal For Key Advantages
1. KCS Firmware (Recommended) Beginners / Zero-Code Users ✔ Auto-detects Home Assistant via MQTT (zero config)
✔ Works with Tuya App + Alexa/Google Voice Control
✔ Local IFTTT automation (no internet needed)
✔ 2-year free KinCony Cloud (official store only)
✔ Apple HomeKit support for Siri
✔ Supports Loxone Miniserver integration
✔ Multi-protocol: HTTP, MQTT, TCP, RS485 Modbus
2. ESPHome Firmware Home Assistant Enthusiasts ✔ Full open-source customization
✔ Official ESPHome device support for N20
✔ Web UI + deep HA integration
✔ Full YAML examples available
3. Tasmota Firmware Open-Source Community ✔ Massive plugin ecosystem
✔ MQTT / Web control + rule engine
4. Arduino / ESP-IDF Custom Code Developers ✔ Full Arduino demos provided
✔ Supports MicroPython / ESP-IDF
5. Hybrid Setup (Best Practice) Advanced Users Tuya App (remote via internet) + Home Assistant (local via LAN) — Security + convenience

II. Technical Resources

Direct links to pin definitions, ESPHome configurations, Arduino demo source codes, and KCS firmware. All open-source and maintained on GitHub.

Resource Link
KCS Firmware kcs_firmware/N20/
Pin Definitions N20_pin_definition.md
Arduino Demos N20/ (examples)
ESPHome Configuration Official ESPHome N20 device page

III. Getting Started Guide

Step 1: Flash Firmware

We recommend using the Online Flasher — no driver installation required, works entirely in your browser. Alternatively, follow the Quick Start Guide for manual flashing with the ESP32 desktop tool.

Step 2: Connect & Configure

Power on the board, connect via Ethernet or Wi-Fi, and access the web configuration interface. For detailed configuration, see the KCS Firmware User Guide.

Step 3: Integrate

Enable MQTT auto-discovery in Home Assistant, or pair with Tuya App for voice control.

IV. Video Tutorial: How to Flash KCS Online

No Drivers Needed, No Complex Setup—Flash Directly within Your Browser in 1 Minute!

How to Flash KCS Online - Video Tutorial
