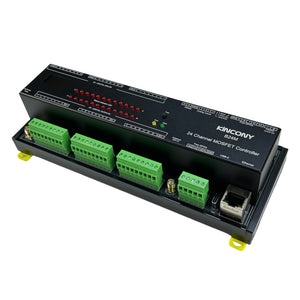

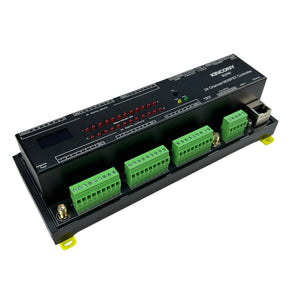

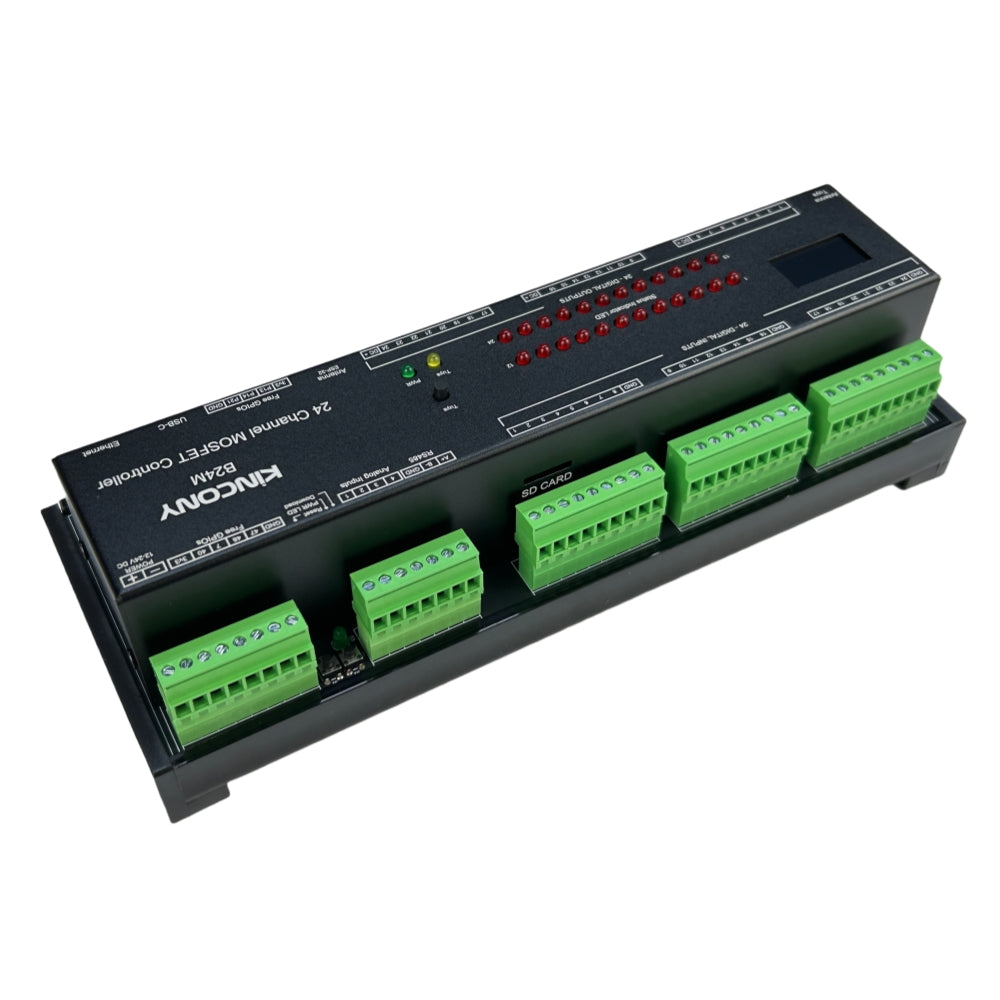

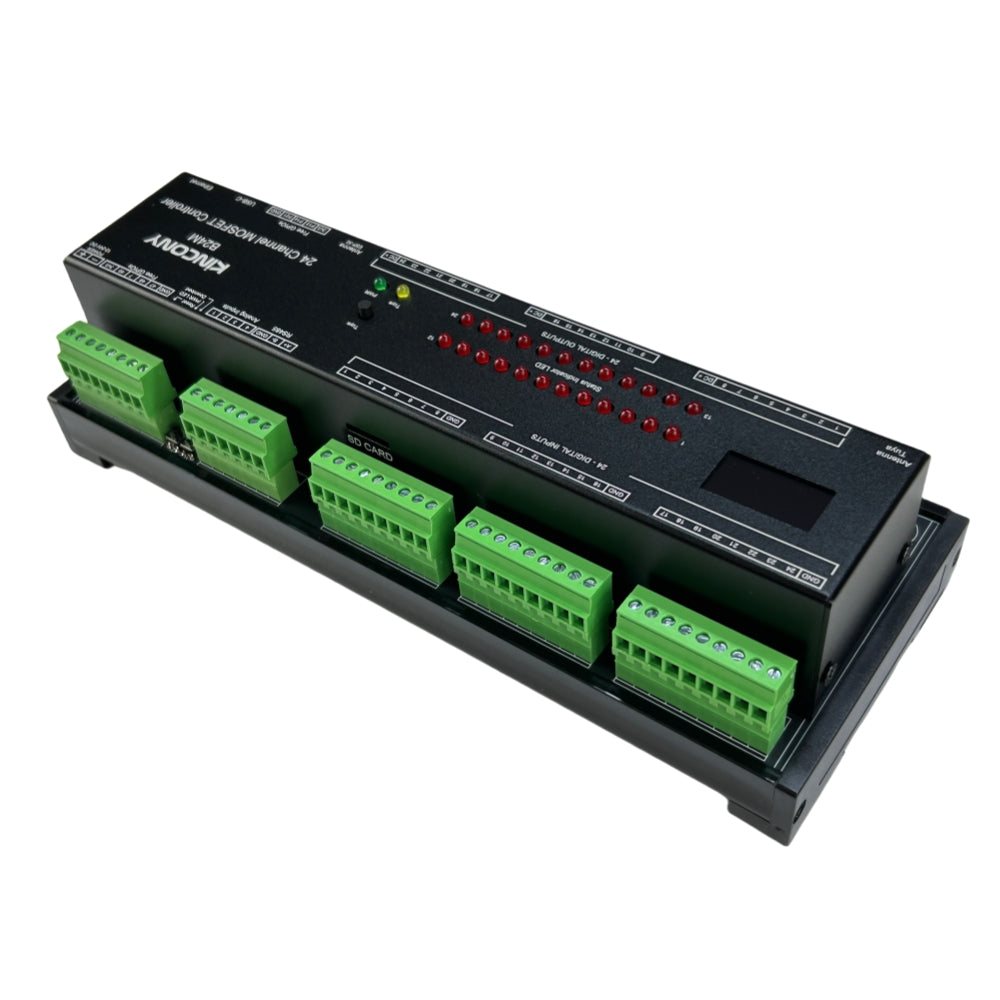

KinCony B24M 24-Channel Smart MOSFET Controller
Frequently Bought Together
Features
- 24 High-Current MOSFET Channels — Equipped with 24× MOSFET outputs rated at 10A per channel, providing silent, high-speed, and wear-free switching for demanding DC loads like high-power LED strips, DC motors, and solenoid valves across large-scale projects.
- 24-Channel Opto-Isolated Digital Inputs — Includes 24× dry contact inputs with optocoupler isolation, supporting cable runs up to 500 meters for reliable status feedback from push buttons, limit switches, and industrial sensors.
- Precision Sensing Suite — Features 4× 16-bit ADC channels for high-accuracy analog monitoring: 2× 0–5 VDC and 2× 4–20 mA loop-powered inputs, ideal for pressure, level, and temperature transmitters.
- Redundant Network & Industrial Bus — Dual connectivity with Wi-Fi and 100Mbps Ethernet ensures reliable local/remote access. Includes an isolated RS485 port for long-distance Modbus communication.
- Standalone Time Intelligence & Diagnostics — Onboard DS3231 RTC (with battery backup) keeps perfect time even without internet, while the OLED display provides at-a-glance IP address and status, and the microSD slot enables local data logging.
- Seamless Ecosystem Integration — Supports Home Assistant auto-discovery (zero-config), KinCony Cloud, Loxone, Apple HomeKit, and Tuya for unified local and cloud automation.
- Flexible Firmware & Development — Full support for KCS firmware (HTTP, MQTT, TCP, RS485 Modbus, Tuya), ESPHome, Tasmota, Arduino IDE, MicroPython, and ESP-IDF.
Why Choose
B-Series Positioning: The B24M is the high-density DC automation flagship of KinCony's B-Series economy line. It is engineered for system integrators who need to consolidate 24 independent DC control channels into a single, cost-effective DIN-rail device — bringing silent, high-frequency switching to large-scale lighting and motorized projects.
- Consolidate 3 Modules into 1, Cut Wiring & Maintenance Costs — Replacing three separate 8-channel controllers with one B24M eliminates inter-module wiring, reduces terminal block usage, and shrinks your cabinet footprint. For large lighting arrays or multi-zone automation, this means fewer failure points and dramatically faster troubleshooting.
- Made for Frequent, Quiet DC Switching — If your project involves dynamic LED lighting, automated valves, or motorized mechanisms, the B24M's solid-state architecture lets you switch as often as needed without counting relay cycles, contact degradation, or audible clicking.
- Choose the Right Output for Your Load Type — Choose the B24M for direct, silent high-frequency switching of DC loads (LED strips, motors, solenoids), or to safely drive external contactors and relays for higher-power AC/DC applications. Choose the B24 for direct AC mains switching via onboard mechanical relays. Choose the F24 if you require premium 16A pluggable OMRON® relays for tool-free field replacement.
- Own Your Data and Logic Forever — With native Home Assistant auto-discovery and full compatibility with KCS v3, ESPHome, and Arduino, the B24M never locks you into a proprietary cloud. Your automations run locally, your data stays on your premises, and you can migrate or customize the firmware at any time — zero vendor lock-in, zero subscription fees.
Technical Specifications:
| Category | Specification |
|---|---|
| Core Processor | ESP32-S3-WROOM-1U (N16R8, dual‑core 32‑bit Xtensa LX7) |
| Analog Inputs |
4× 16‑bit ADC ▪ 2× 0–5 VDC ▪ 2× 4–20 mA (loop‑powered) |
| Digital Inputs |
24× dry contact, opto‑isolated ▪ Cable length: up to 500 m (dependent on installation) |
| Digital Outputs |
24× MOSFET ▪ Max load: 10 A per channel |
| Free GPIOs |
▪ 3× without PCB pull-up resistors (GPIO13, GPIO14, GPIO21) ▪ 4× with PCB pull-up resistors (GPIO7, GPIO40, GPIO48, GPIO47) |
| Wireless Connectivity | ▪ Wi‑Fi 2.4 GHz (802.11 b/g/n) ▪ Bluetooth 5.0 (BLE) |
| IoT Platform | Tuya‑compatible (via Wi‑Fi/Bluetooth) |
| Wired Connectivity | ▪ Ethernet: 100M RJ45 (IPv4/IPv6) ▪ RS485 ▪ USB‑C (programming) |
| Onboard Peripherals | ▪ RTC: DS3231 (battery socket) ▪ Display: SSD1306 128×64 OLED (I²C) ▪ Storage: microSD card socket ▪ Buttons: 3× (ESP32 Reset / ESP32 Download / Tuya Config) |
| Power Supply | 12-24 VDC |
| Dimensions | 220 × 83 × 56 mm |
| Mounting | 35 mm DIN rail |

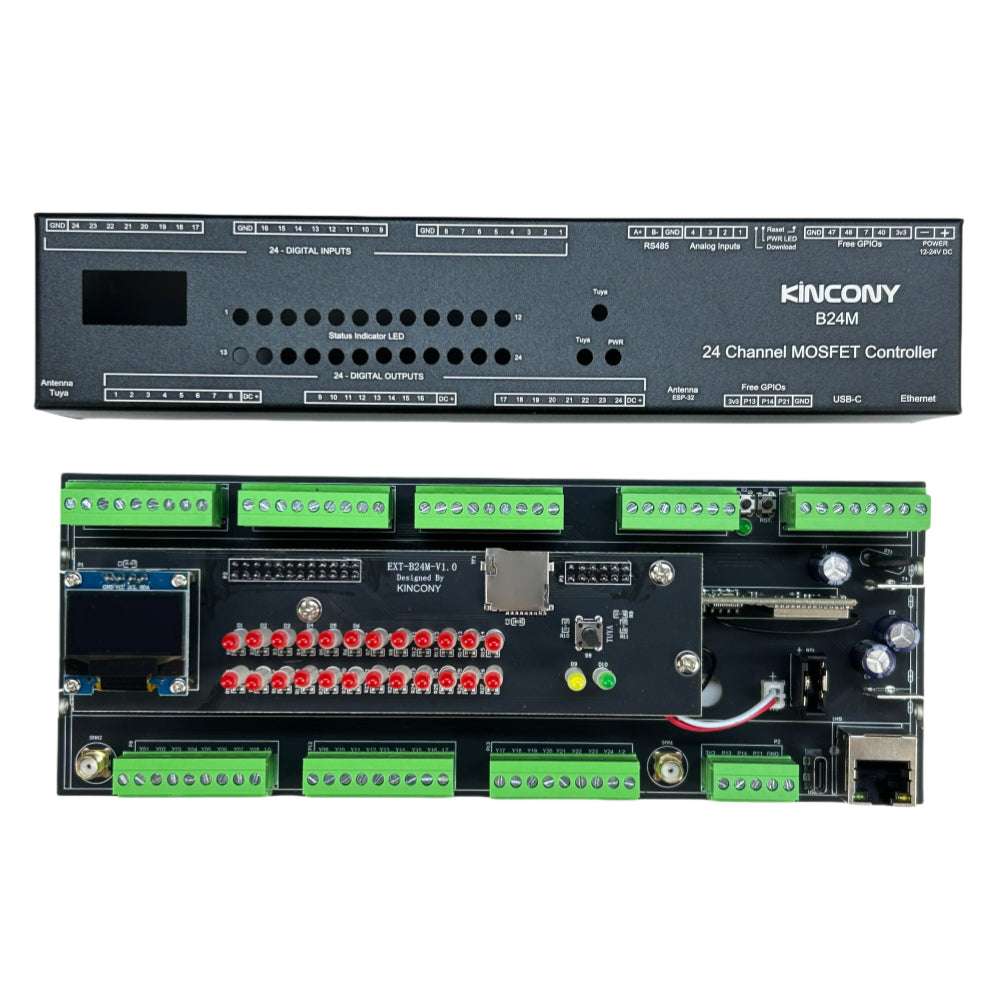

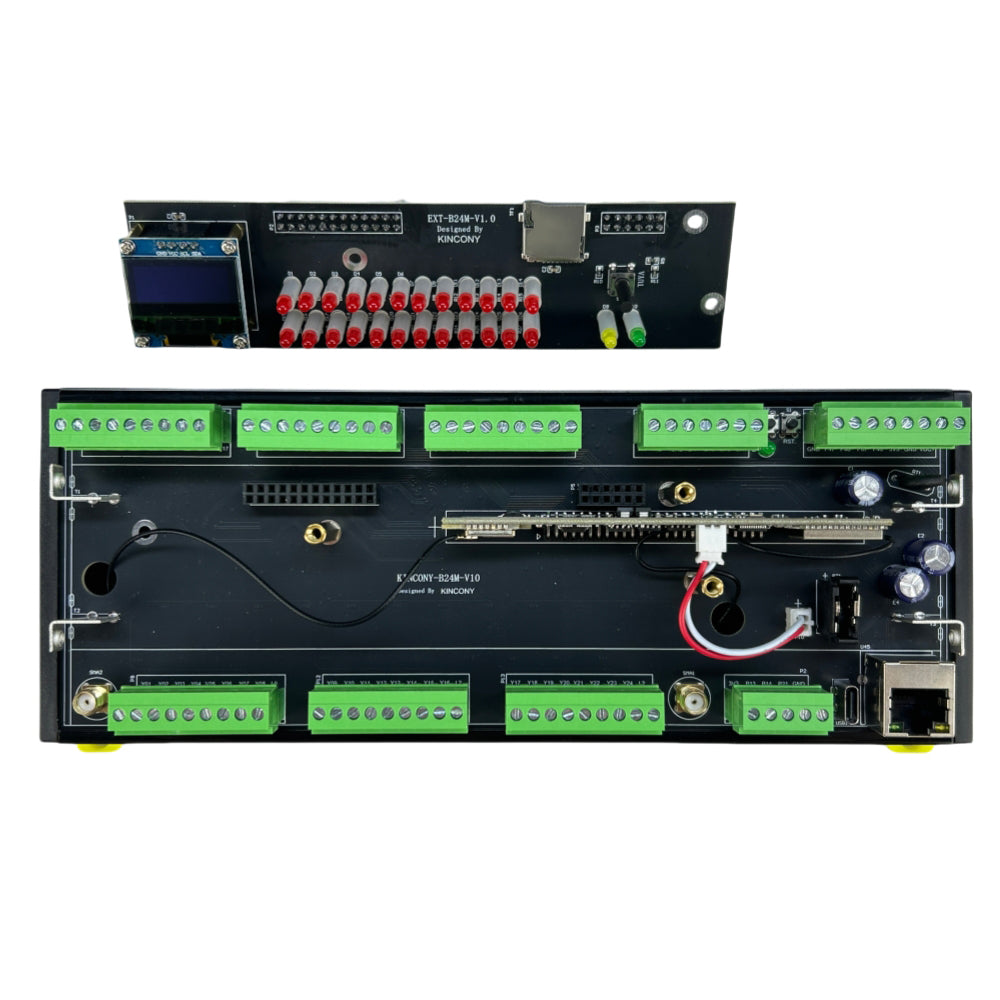

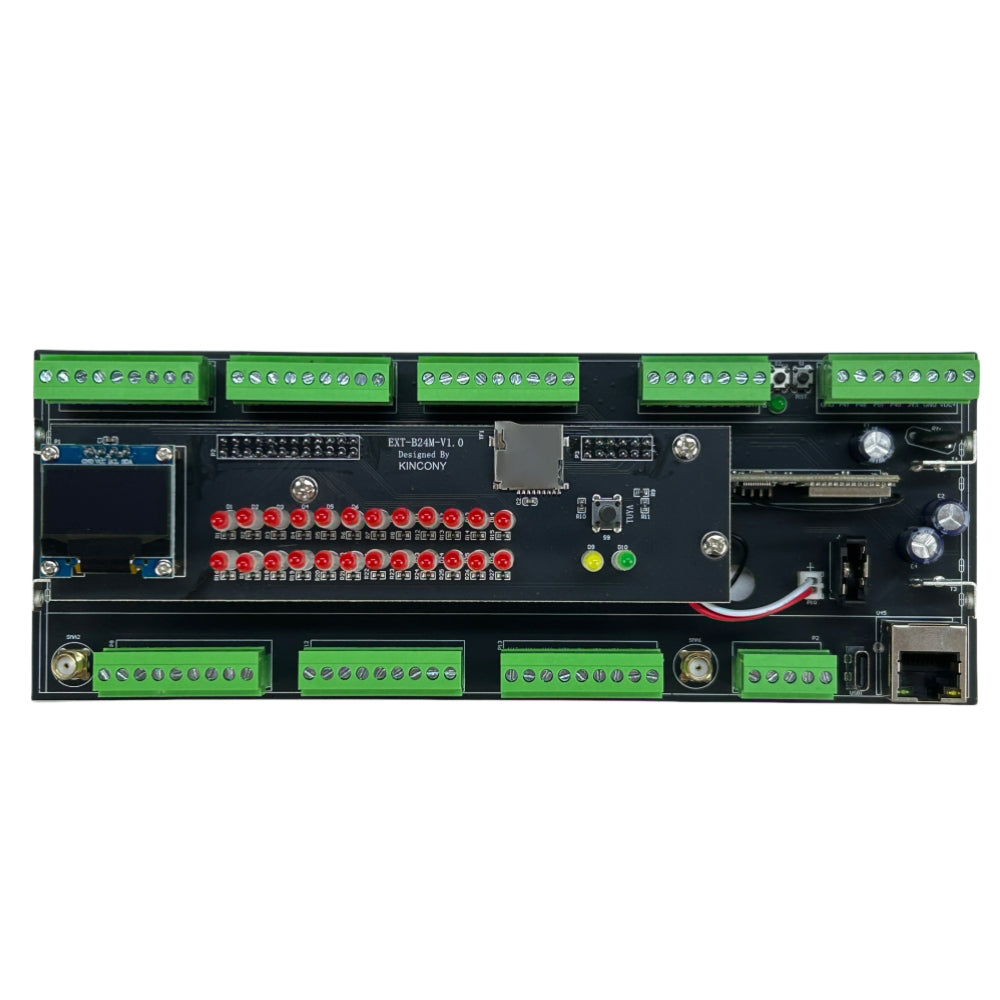

Onboard Components
-
1.
Digital Input Terminals
Screw terminals for dry contact digital input, opto-isolated -
2.
RS485 Terminals
Screw terminals for RS485 communication (A / B) -
3.
Analog Input Terminals
Screw terminals for analog input (0–5 V / 4–20 mA) -
4.
Free GPIO Terminals (with pull-up resistor)
Screw terminals for Free GPIO access with onboard pull-up resistors -
5.
Power Supply Screw Terminal
Supports DC 12-24V power input -
6.
MOSFET Output Terminals
Screw terminals for MOSFET output connection (DC loads only) -
7.
Free GPIO Terminals (without pull-up resistor)
Screw terminals for Free GPIO access without onboard pull-up resistors -
8.
Tuya Antenna Connector
SMA female connector, for Tuya wireless communication
-
9.
ESP32 Antenna Connector
SMA female connector, for Wi-Fi and Bluetooth wireless communication -
10.
USB-C Port
For firmware flashing only (cannot be used for power supply or data communication) -
11.
Ethernet Port
100M RJ45 Ethernet port for stable wired network connection -
12.
RTC Battery Holder
Battery holder, maintains RTC timekeeping when main power is off -
13.
ESP32 Download Button
Download button for ESP32 firmware flashing -
14.
ESP32 Reset Button
Reset button for ESP32 module -
15.
Lower Board Power Status LED
Indicates the power status of the lower circuit board
-
16.
ESP32-S3-WROOM-1U N16R8 Chip
Adopts ESP32-S3 series chip with Xtensa 32-bit LX7 dual-core processor, built in 16MB Flash and 8MB PSRAM -
17.
Tuya Chip
Tuya wireless communication module for cloud connectivity and smart control -
18.
W5500 Chip
Ethernet controller, extends 10/100 Mbps Ethernet via SPI interface
-
19.
PCF8575 I²C 16-bit GPIO Expander
I²C bus GPIO expander chip, expands available digital input/output channels -
20.
TVS Protection
Transient Voltage Suppressor, suppresses surge voltages and transient spikes
-
21.
SSD1306 OLED Display
I²C OLED display for showing IP address and device connection status -
22.
microSD Card Slot
Supports external TF card for local data logging and file storage -
23.
MOSFET Status LEDs
Indicates MOSFET output ON/OFF working status
-
24.
Upper Board Power Status LED
Indicates the power status of the upper circuit board -
25.
Tuya Status LED
Indicates Tuya cloud connection status -
26.
Tuya Config Button
Config button for Tuya network pairing
-
27.

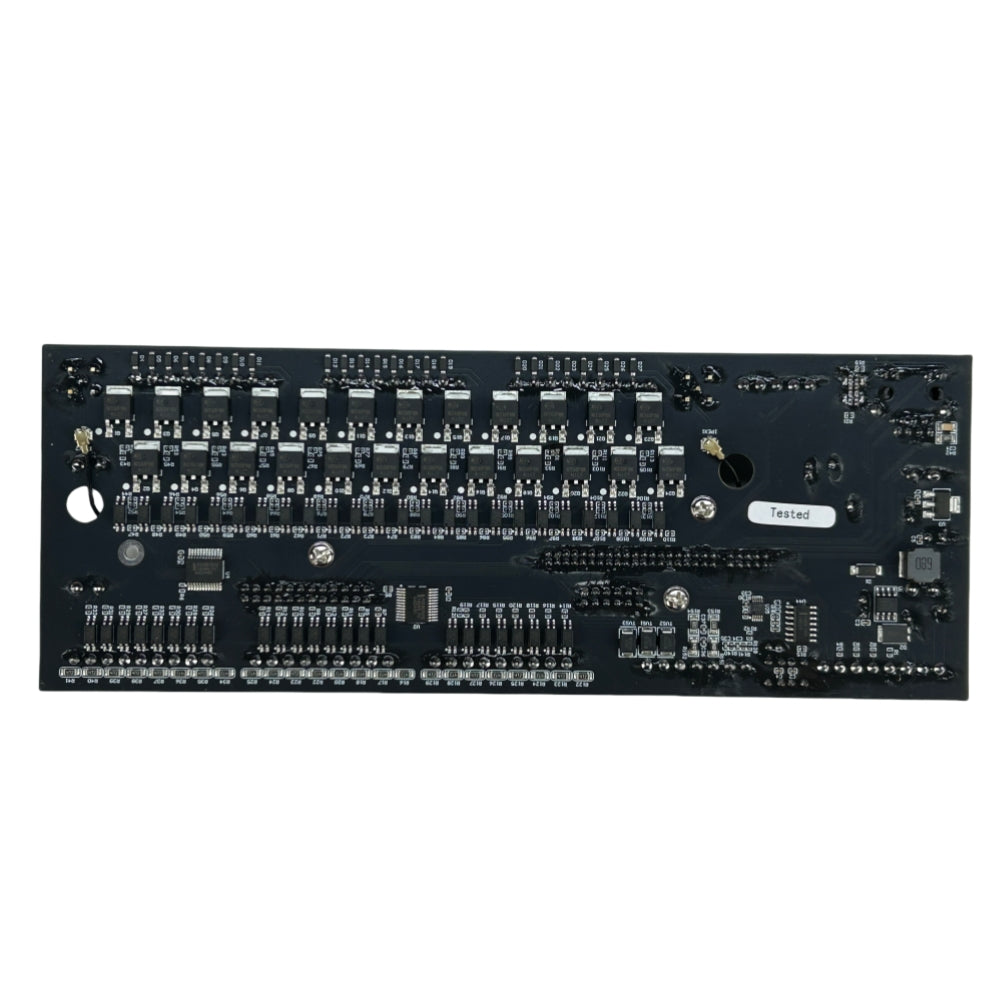

MOSFETs
High-current solid-state switches for driving DC loads silently and without mechanical wear -
28.
Reverse Polarity Protection
Protects the circuit from reverse power connection -
29.
ADS1115 Chip
16-bit ADC for high-precision analog input
-
30.
Optocoupler Isolation
Prevents interference from external signals, ensuring stable operation -
31.
Back-EMF Suppression
Flyback diodes that protect the MOSFETs from voltage spikes generated by inductive DC loads when switched off
Onboard Isolation & Protection
Voltage Regulator
Provides a stable 3.3V output, protecting the core chip from voltage fluctuations.
Reverse Polarity Protection
Prevents circuit damage caused by accidental reverse power connection.
TVS Protection
Transient Voltage Suppressors absorb surge voltages and spikes, safeguarding sensitive components.
Optocoupler Isolation
Isolates external signals from the MCU, preventing interference and voltage spikes.
Back-EMF Suppression
Flyback diodes absorb high-voltage spikes generated by inductive DC loads (like motors or valves) when switched off, protecting the MOSFETs.
System Block Diagram
Enclosure Design

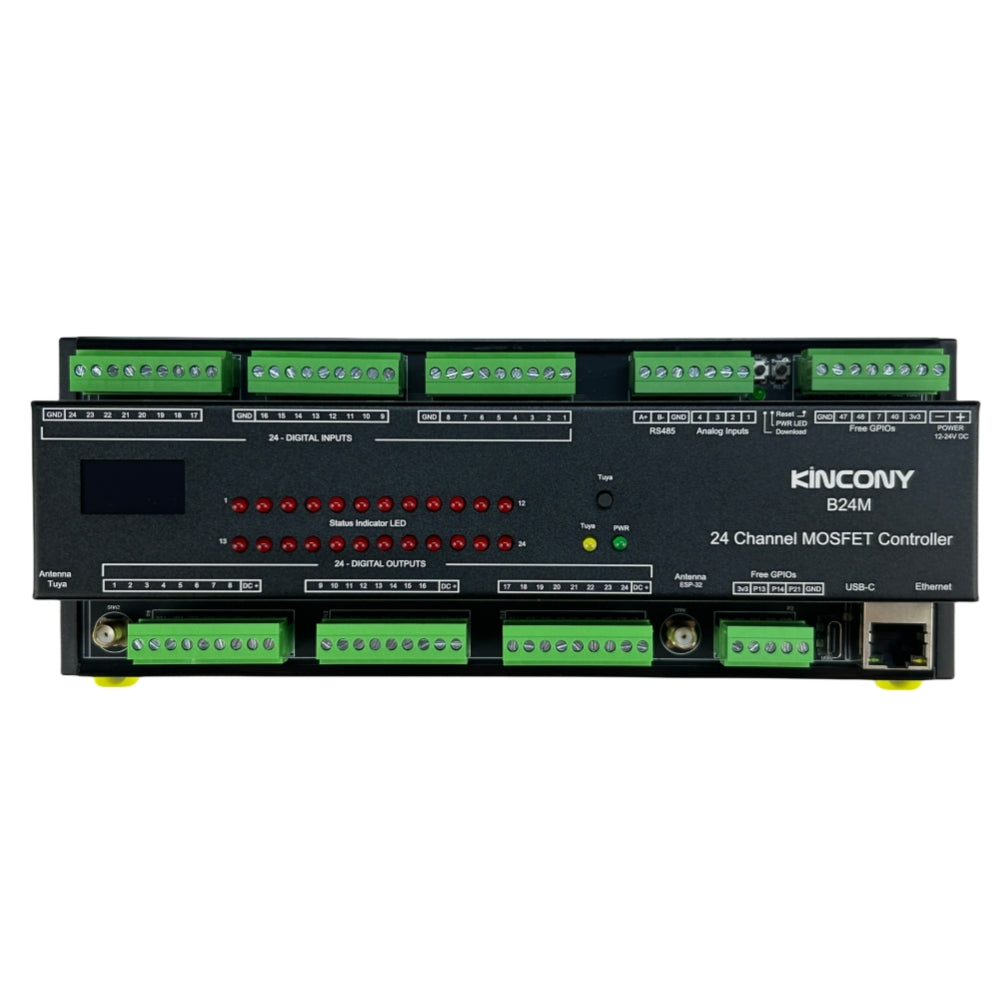

Top View — Aluminum Top Cover

Aluminum Cover Detail

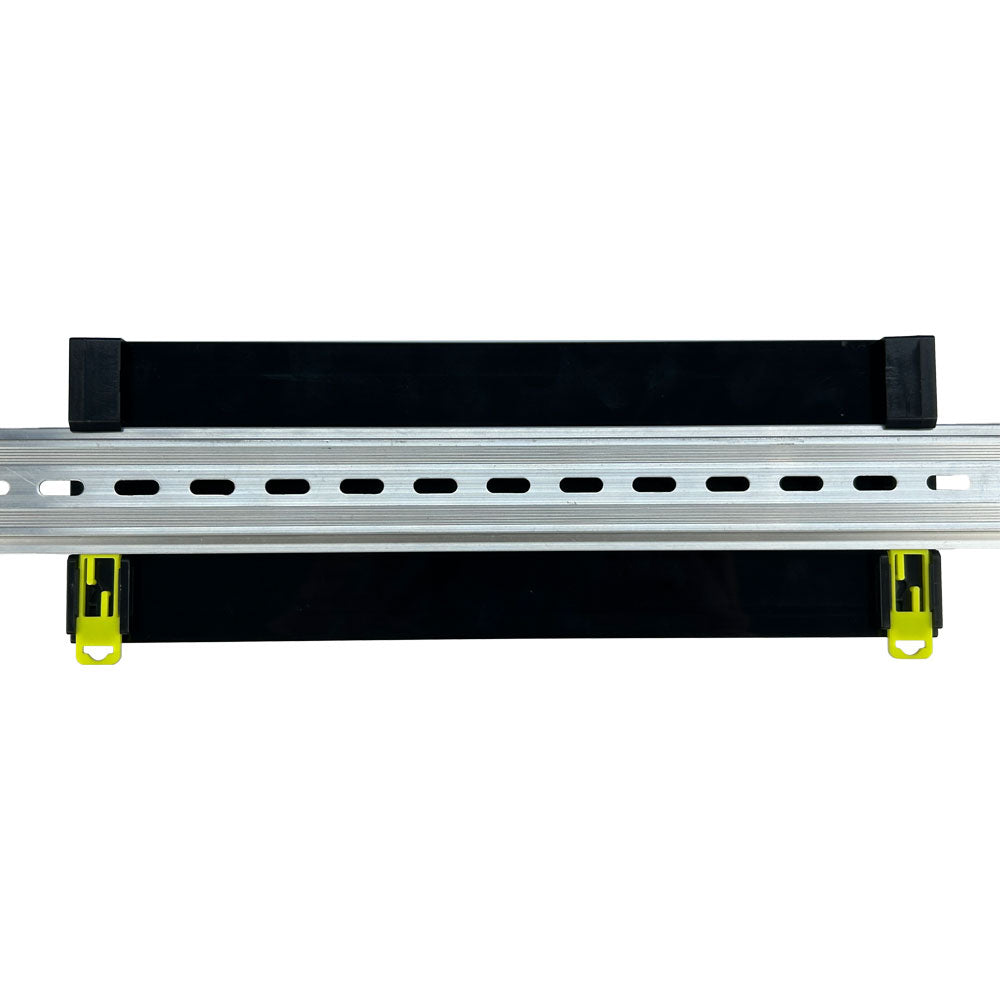

Back View — Plastic Base with 35 mm DIN Rail Mount

DIN Rail Base Detail — 35 mm Standard DIN Rail
Aluminum Top Cover Advantages
1. Premium Feel: Compared with ordinary ABS plastic cases, the aluminum top cover offers a more solid, high-end texture and better heat dissipation.
2. EMI Shielding: As a non-magnetic conductor, the aluminum top cover acts as a Faraday cage, protecting internal circuits from external electromagnetic radiation and preventing internal emissions.
Outline Dimensions
Front View — Overall 220 × 83 mm / Aluminum cover 208 × 45 mm
Side View — Overall height 56 mm / Aluminum cover height 39 mm
Overall Length
220 mm
Overall Width
83 mm
Overall Height
56 mm
Mounting
35 mm DIN
Supports Arduino, Micropython, ESP-IDF development
Arduino IDE
Arduino IDE is an open-source electronic prototyping platform. It is convenient, flexible, and easy to start. With a simple learning curve, you can rapidly develop your projects.
MicroPython
MicroPython is a full implementation of Python 3 that runs directly on embedded hardware. It enables agile IoT development like Raspberry Pi Pico.
ESP-IDF
ESP-IDF is Espressif's official development framework. It provides low-level hardware access, maximum performance, and professional control for production-grade firmware.
For full firmware packages, demo codes and programming tutorials, please switch to the "Software Solution" tab above.
Packing List
Please Note: The RTC coin cell battery is not included in the standard package due to shipping regulations.
Batch Customization Service
Support software and hardware customization including interface logo label case etc.
Label Customization
Logo, sticker, nameplate
Hardware Customization
PCB, interface, casing
Software Customization
Firmware, function, UI
Contact Customer Service
Send your customization requirements
One-to-One Technical Service
Professional evaluation and solution
Sign Contract & Start Project
Custom development and sample making
Sample Approval & Mass Production
Batch delivery after sample passes
B24M vs B24 vs F24
Shared Features: ESP32-S3 N16R8 · 100M Ethernet + Wi-Fi + Bluetooth · DS3231 RTC · OLED display · microSD · RS485 · 24× opto-isolated DI (500m) · DIN-rail mounting · ESPHome / Home Assistant / Tuya support.
Key Differences
| Item |
B24M(24CH MOSFET) |
B24(24CH Relay) |
F24(24CH Removable Relay) |
|---|---|---|---|
| Output Type | MOSFET DC switch (DC loads only) | Mechanical relay, COM / NO | Pluggable OMRON® SPDT relay, COM / NO |
| Output Load | 10A per channel (DC only) | Max 250VAC / 30VDC, 7A per channel | Max 250VAC / 30VDC, 16A per channel |
| Switching | No contact, silent, high-speed; PWM via Free GPIO | Mechanical contact; audible click | Mechanical contact; pluggable for tool-free replacement |
| Form Factor | Standard width (220mm) | Standard width (239mm) | Wide footprint (longer width for relays) |
| Manual Override | — | Yes (Mini Toggle Switch) | Yes (Mini Toggle Switch) |
| Analog Inputs | 4× 16-bit ADC (0–5V, 4–20mA) | 4× 16-bit ADC (0–5V, 4–20mA) | 4× 16-bit ADC (0–5V, 4–20mA) |
| GPIO | 7× free GPIO | 7× free GPIO | 6× free GPIO |
| Power Supply | 12–24 VDC wide voltage | 12 VDC (fixed) | 12/24 VDC |
* Note: "Max 250VAC" is the maximum rating. Relay contacts are fully compatible with global mains systems, including 110V/120V (North America) and 220V/240V (Europe/Asia).
Which One Should You Choose?
Choose B24M if you need:
- All loads are DC 12V / 24V (LED strips, DC motors)
- Silent, high-speed switching with no mechanical wear
- External PWM dimming or speed control via free GPIO
- Purely software-controlled (no physical override switches)
- Wide 12–24V DC input voltage flexibility
Choose B24 if you need:
- 24 channels of AC mains relay control
- Standard COM / NO wiring logic
- Standard 7A capacity for typical AC loads
- Physical mini toggle switches for manual override
- A fixed 12V DC power system
Choose F24 if you need:
- Pluggable OMRON® relays for tool-free replacement
- Higher relay rating (16A per channel)
- Physical mini toggle switches for manual override
- Industrial-grade reliability with a larger installation footprint
I. Firmware Options & Features
| Solution | Ideal For | Key Advantages |
|---|---|---|
| 1. KCS Firmware (Recommended) | Beginners / Zero-Code Users |
✔ Auto-detects Home Assistant via MQTT (zero config) ✔ Works with Tuya App + Alexa/Google Voice Control ✔ Local IFTTT automation (no internet needed) ✔ 2-year free KinCony Cloud (official store only) ✔ Apple HomeKit support for Siri ✔ Supports Loxone Miniserver integration ✔ Multi-protocol: HTTP, MQTT, TCP, RS485 Modbus, Tuya |
| 2. ESPHome Firmware | Home Assistant Enthusiasts |
✔ Full open-source customization ✔ Official ESPHome device support for B24M ✔ Web UI + deep HA integration ✔ Full YAML examples available |
| 3. Tasmota Firmware | Open-Source Community |
✔ Massive plugin ecosystem ✔ MQTT / Web control + rule engine |
| 4. Arduino / ESP-IDF Custom Code | Developers |
✔ Full Arduino demos provided ✔ Supports MicroPython / ESP-IDF |
| 5. Hybrid Setup (Best Practice) | Advanced Users | Tuya App (remote via internet) + Home Assistant (local via LAN) — Security + convenience |
II. Technical Resources
Direct links to pin definitions, ESPHome configurations, Arduino demo source codes, and KCS firmware. All open-source and maintained on GitHub.
| Resource | Link |
|---|---|
| KCS Firmware | kcs_firmware/B24M/ |
| Pin Definitions | B24M_pin_definition.md |
| Arduino Demos | B24M/ (11 examples) |
| ESPHome Configuration | Official ESPHome B24M device page |
III. Getting Started Guide
Step 1: Flash Firmware
We recommend using the Online Flasher — no driver installation required, works entirely in your browser. Alternatively, follow the Quick Start Guide for manual flashing with the ESP32 desktop tool.
Step 2: Connect & Configure
Power on the board, connect via Ethernet or Wi-Fi, and access the web configuration interface. For detailed configuration, see the KCS Firmware User Guide.
Step 3: Integrate
Enable MQTT auto-discovery in Home Assistant, or pair with Tuya App for voice control.
IV. Video Tutorial: How to Flash KCS Online
No Drivers Needed, No Complex Setup—Flash Directly within Your Browser in 1 Minute!
