KinCony B16 16-Channel Smart Relay Controller

Regular price $170.00 Sale price $153.00
MCU:
ESP32‑S3‑WROOM‑1U
Inputs:
4×16bit ADC (2×0‑5V, 2×4‑20mA), 16×Dry‑contact opto‑isolated
Outputs:
16×Relay (up to 250VAC / 30VDC 7A per channel)
GPIOs:
3×without pull-up, 4×with pull-up
Onboard:
DS3231 RTC, microSD slot, 0.96” SSD1306 OLED, 16×Manual Toggle Switch
Comm:
Wi‑Fi 2.4G, Bluetooth 5.0, 100M Ethernet, RS485, USB‑C
Power:
DC 12V
Dev:
KCS firmware, Arduino / ESP‑IDF, ESPHome, Tasmota, MicroPython, MQTT, Local API
App:
Tuya Smart / Smart Life, Home Assistant, Loxone, HomeKit

Frequently Bought Together

KinCony B16 16-Channel Smart Relay Controller
+
Type-C USB Cable
+
AC  Adapter
AC  Adapter
This item: KinCony B16 16-Channel Smart Relay Controller -
Regular price $170.00 Sale price $153.00
Type-C USB Cable
Type-C USB Cable -
Sale price $3.50
AC  Adapter
AC Adapter -
Sale price $6.50
Price for all:
Regular total price $180.00 Sale total price $163.00

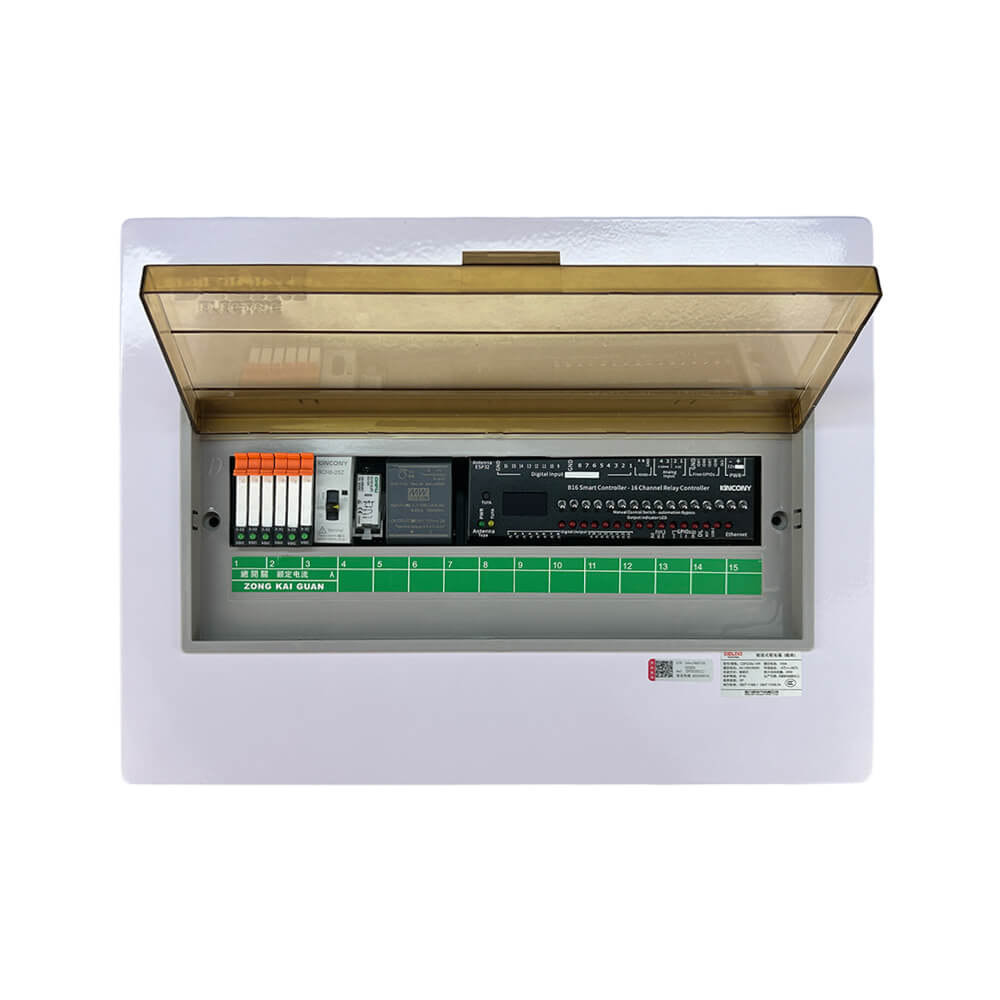

B16 Smart Controller Mounted on DIN Rail

Features


  • 16 High-Density Relay Channels — Equipped with 16× mechanical relays featuring a COM / NC (Normally-Closed) configuration, up to 250VAC / 30VDC, 7A per channel. Ideal for high-density industrial cabinets and large-scale automation panels.
  • 16-Channel Opto-Isolated Digital Inputs — Includes 16× dry contact inputs with optocoupler isolation, supporting cable runs up to 500 meters for reliable status feedback from push buttons, limit switches, and industrial sensors.
  • Precision Sensing Suite — Features 4× 16-bit ADC channels for high-accuracy analog monitoring: 2× 0–5 VDC and 2× 4–20 mA loop-powered inputs, ideal for pressure, level, and temperature transmitters.
  • Redundant Network & Industrial Bus — Dual connectivity with Wi-Fi and 100Mbps Ethernet ensures reliable local/remote access. Includes an isolated RS485 port for long-distance Modbus communication.
  • Standalone Time Intelligence & Diagnostics — Onboard DS3231 RTC (with battery backup) keeps perfect time even without internet, while the OLED display provides at-a-glance IP address and status, and the microSD slot enables local data logging.
  • Fail-Safe Manual Override — Physical toggle switches for each relay channel allow you to force loads ON or OFF directly, guaranteeing continuous operation and simplifying troubleshooting during network drops.
  • Seamless Ecosystem Integration — Supports Home Assistant auto-discovery, Loxone, Apple HomeKit, and Tuya for unified local and cloud automation.
  • Flexible Firmware & Development — Full support for KCS firmware (HTTP, MQTT, TCP, RS485 Modbus, Tuya), ESPHome, Tasmota, Arduino IDE, MicroPython, and ESP-IDF.



Why Choose


B-Series Positioning: The B16 belongs to KinCony's B-Series economy line — the 2nd-generation successor to the original A-Series. It is the 16-channel flagship for high-density AC control, packing 16 high-power relay channels into a single DIN-rail device at an incredibly competitive price.

  • High-Density AC Control at a Value Price — Unlike the B16M (which is strictly DC-only), the F16 (which targets premium industrial budgets with pluggable OMRON® relays), or the CO16 (which focuses on massive analog acquisition), the B16 delivers 16 channels of AC mains control at a fraction of the cost. It is perfect for large-scale lighting arrays, multi-zone pumps, and high-density control cabinets.
  • Unique COM / NC Relay Configuration — Most standard relay boards use Normally-Open (NO) contacts. The B16 features a Normally-Closed (NC) configuration, offering a distinct hardware advantage for specific safety logic, fail-safe circuits, or security systems where power must remain connected by default even during a power loss.
  • Optimized for Dedicated 12V Systems — While the B16M and CO16 accept 12–24V wide voltage, the B16 is engineered natively for 12V DC power systems. If your entire electrical cabinet runs on 12V, the B16 provides a more cost-effective fit without paying for unused wide-voltage components.
  • True Hardware Independence, Not Just a Backup — The 16 physical toggle switches are not merely a convenience; they are a dedicated, hard-wired control layer that operates entirely independently of the ESP32-S3, firmware, and network. In critical industrial or commercial environments, this ensures you can always take control, regardless of the state of the software stack.
  • Right Choice vs B16M, F16, and T16 — Choose B16 for affordable 16-channel AC mains control with NC contacts. Choose B16M for standard-sized silent DC switching with PWM dimming. Choose F16 for premium 16A pluggable OMRON® relays. Choose T16 if you need an ultra-compact, Tiny footprint for high-density DC panels. The B16 sits at the best-value sweet spot for multi-channel AC panels.
  • Own Your Automation Stack, Forever — The B16 is built for those who value digital sovereignty. With native local control via Home Assistant and a fully open SDK, your automations are not dependent on a third-party cloud. You retain 100% ownership of your data, logic, and device lifecycle — with zero vendor lock-in.



Technical Specifications:

Category Specification
Core Processor ESP32-S3-WROOM-1U (N16R8, dual‑core 32‑bit Xtensa LX7)
Analog Inputs 4× 16‑bit ADC
▪ 2× 0–5 VDC
▪ 2× 4–20 mA (loop‑powered)
Digital Inputs 16× dry contact, opto‑isolated
▪ Cable length: up to 500 m (dependent on installation)
Digital Outputs 16× relays
▪ Contact: COM, NC (1 × SPST-NC / Form B per channel)
▪ Max load: 250 VAC / 30 VDC, 7 A per channel
Free GPIOs ▪ 3× without pull-up resistance on PCB (GPIO13, GPIO14, GPIO21)
▪ 4× with pull-up resistance on PCB (GPIO40, GPIO48, GPIO47, GPIO7)
Wireless Connectivity ▪ Wi‑Fi 2.4 GHz (802.11 b/g/n)
▪ Bluetooth 5.0 (BLE)
IoT Platform Tuya‑compatible (via Wi‑Fi/Bluetooth)
Wired Connectivity ▪ Ethernet: 100M RJ45 (IPv4/IPv6)
▪ RS485
▪ USB‑C (programming)
▪ I²C (expansion)
Onboard Peripherals ▪ RTC: DS3231 (battery socket)
▪ Display: SSD1306 128×64 OLED (I²C)
▪ Storage: microSD card socket
▪ Buttons: 3× (ESP32 Reset / ESP32 Download / Tuya Config)
▪ Toggle Switches: 16× (Manual relay ON/OFF control)
Power Supply 12 VDC
Dimensions 160 × 83 × 59 mm
Mounting 35 mm DIN rail



Onboard Components


B16 Onboard Components - Main Board
B16 Onboard Components - Top Board
  • 1.
    ESP32-S3-WROOM-1U N16R8 Chip
    Adopts ESP32-S3 series chip with Xtensa 32-bit LX7 dual-core processor, built in 16MB Flash and 8MB PSRAM
  • 2.
    Tuya Chip
    Tuya wireless communication module for cloud connectivity and smart control
  • 3.
    Relays
    16-channel high-power mechanical relays for direct AC/DC load switching
  • 4.
    RTC Battery Holder
    Battery holder, maintains RTC timekeeping when main power is off
  • 5.
    Digital Input Terminals
    Screw terminals for dry contact digital input, opto-isolated
  • 6.
    RS485 Terminals
    Screw terminals for RS485 communication (A / B)
  • 7.
    Analog Input Terminals
    Screw terminals for analog input (0–5 V / 4–20 mA)
  • 8.
    Free GPIO Terminals
    Screw terminals for free GPIO access for custom IO projects
  • 9.
    Power Supply Screw Terminal
    Supports DC 12V power input
  • 10.
    Relay Terminals
    Screw terminals for relay output connection
  • 11.
    I²C Terminals
    Screw terminals for I²C bus expansion
  • 12.
    1-Wire GPIO Terminals
    Screw terminals for 1-Wire devices such as temperature sensors
  • 13.
    Tuya Antenna Connector
    SMA female connector, for Tuya wireless communication
  • 14.
    USB-C Port
    For firmware flashing only (cannot be used for power supply or data communication)
  • 15.
    Ethernet Port
    100M RJ45 Ethernet port for stable wired network connection
  • 16.
    ESP32 Antenna Connector
    SMA female connector, for Wi-Fi and Bluetooth wireless communication
  • 17.
    ESP32 Reset Button
    Reset button for ESP32 module
  • 18.
    ESP32 Download Button
    Download button for ESP32 firmware flashing
  • 19.
    W5500 Chip
    Ethernet controller, extends 10/100 Mbps Ethernet via SPI interface
  • 20.
    PCF8575 I²C 16-bit IO Expander
    I²C bus IO expander chip, expands available digital input/output channels
  • 21.
    RS485 Transceiver
    RS485 transceiver chip for reliable long-distance serial communication
  • 22.
    SSD1306 OLED Display
    I²C OLED display for showing IP address and device connection status
  • 23.
    microSD Card Slot
    Supports external TF card for local data logging and file storage
  • 24.
    Manual Override Toggle Switches
    Physical toggle switches for each relay channel, allowing manual ON/OFF control
  • 25.
    Tuya Config Button
    Config button for Tuya network pairing
  • 26.
    Relay Status LEDs
    Indicates relay ON/OFF working status
  • 27.
    Power Status LED
    PWR indicator, shows power supply status
  • 28.
    Tuya Status LED
    Indicates Tuya cloud connection status
B16 Onboard Components - Back View
  • 29.
    Optocoupler Isolation
    Prevents interference from external signals, ensuring stable operation
  • 30.
    ADS1115 Chip
    16-bit ADC for high-precision analog input
  • 31.
    TVS Protection
    Transient Voltage Suppressor, suppresses surge voltages and transient spikes
  • 32.
    Reverse Polarity Protection
    Protects the circuit from reverse power connection
  • 33.
    PCF8575 I²C 16-bit GPIO Expander
    I²C bus GPIO expander chip, expands available digital input/output channels



Onboard Isolation & Protection


B16 Onboard Isolation and Protection

Voltage Regulator

Provides a stable 3.3V output, protecting the core chip from voltage fluctuations.

Reverse Polarity Protection

Prevents circuit damage caused by accidental reverse power connection.

Thicken Track

Reinforced copper traces for high-current paths, ensuring stable power delivery under heavy loads.

Optocoupler Isolation

Isolates external signals from the MCU, preventing interference and voltage spikes.



System Block Diagram


B16 System Block Diagram



Enclosure Design


B16 Aluminum Enclosure Top

Top View — Aluminum Top Cover

B16 Aluminum Cover Detail

Aluminum Cover Detail

B16 Aluminum Enclosure Back

Back View — Plastic Base with 35 mm DIN Rail Mount

B16 DIN Rail Mount Base

DIN Rail Base Detail — 35 mm Standard DIN Rail

Aluminum Top Cover Advantages

1. Premium Feel: Compared with ordinary ABS plastic cases, the aluminum top cover offers a more solid, high-end texture and better heat dissipation.

2. EMI Shielding: As a non-magnetic conductor, the aluminum top cover acts as a Faraday cage, protecting internal circuits from external electromagnetic radiation and preventing internal emissions.



Outline Dimensions


B16 Outline Dimensions - Front View

Front View — Overall 160 × 83 mm / Aluminum cover 147 × 43 mm

B16 Outline Dimensions - Side View

Side View — Overall height 59 mm / Aluminum cover height 40 mm

Overall Length

160 mm

Overall Width

83 mm

Overall Height

59 mm

Mounting

35 mm DIN



Supports Arduino, Micropython, ESP-IDF development


Arduino IDE

Arduino IDE

Arduino IDE is an open-source electronic prototyping platform. It is convenient, flexible, and easy to start. With a simple learning curve, you can rapidly develop your projects.

MicroPython

MicroPython

MicroPython is a full implementation of Python 3 that runs directly on embedded hardware. It enables agile IoT development like Raspberry Pi Pico.

ESP-IDF

ESP-IDF

ESP-IDF is Espressif's official development framework. It provides low-level hardware access, maximum performance, and professional control for production-grade firmware.

For full firmware packages, demo codes and programming tutorials, please switch to the "Software Solution" tab above.



Packing List


Item
Quantity
B16 Smart Controller
B16 Smart Controller
1×
Antennas
Antennas
2×

Please Note: The RTC coin cell battery is not included in the standard package due to shipping regulations.



Batch Customization Service


Support software and hardware customization including interface logo label case etc.

Label Customization

Logo, sticker, nameplate

Hardware Customization

PCB, interface, casing

Software Customization

Firmware, function, UI

01

Contact Customer Service

Send your customization requirements

>>>
02

One-to-One Technical Service

Professional evaluation and solution

>>>
03

Sign Contract & Start Project

Custom development and sample making

>>>
04

Sample Approval & Mass Production

Batch delivery after sample passes

B16 vs B16M vs F16 vs T16

Shared Features: ESP32-S3 N16R8 · 100M Ethernet + Wi-Fi + Bluetooth · DS3231 RTC · OLED display · microSD · RS485 · 16× opto-isolated DI (500m) · DIN-rail mounting · ESPHome / Home Assistant / Tuya support.

Key Differences

Item B16 B16
(16CH Relay NC)
B16M B16M
(16CH MOSFET)
F16 F16
(16CH Removable Relay)
T16 T16
(16CH Tiny MOSFET)
Output Type Mechanical relay, COM / NC MOSFET DC switch (DC loads only) Pluggable OMRON® SPDT relay, COM / NO MOSFET DC switch (DC loads only)
Output Load Max 250VAC / 30VDC, 7A per channel 10A per channel (DC only) Max 250VAC / 30VDC, 16A per channel 10A per channel (DC only)
Switching Mechanical contact; audible click No contact, silent, high-speed; PWM via Free GPIO Mechanical contact; pluggable for tool-free replacement No contact, silent, high-speed; PWM via Free GPIO
Form Factor Standard width (160mm) Standard width (160mm) Wide footprint (195mm) Tiny form factor (115mm)
Analog Inputs 4× 16-bit ADC (0–5V, 4–20mA) 4× 16-bit ADC (0–5V, 4–20mA) 4× 16-bit ADC (0–5V, 4–20mA) 4× 16-bit ADC (0–5V, 4–20mA)
GPIO 3× 1-Wire + 4× free GPIO 3× 1-Wire + 4× free GPIO 4× 1-Wire + 1× free GPIO 3× 1-Wire + 4× free GPIO
Power Supply 12 VDC (fixed) 12–24 VDC wide voltage 12/24 VDC 12–24 VDC wide voltage

* Note: "Max 250VAC" is the maximum rating. Relay contacts are fully compatible with global mains systems, including 110V/120V (North America) and 220V/240V (Europe/Asia).

Which One Should You Choose?

Choose B16 if you need:

  • 16 channels of AC mains relay control
  • Special COM / NC (normally closed) wiring logic
  • Standard 7A capacity for typical AC loads
  • A fixed 12V DC power system

Choose B16M if you need:

  • All loads are DC 12V / 24V (LED strips, DC motors)
  • Silent, high-speed switching with no mechanical wear
  • External PWM dimming or speed control via free GPIO
  • Wide 12–24V DC input voltage flexibility

Choose F16 if you need:

  • Pluggable OMRON® relays for tool-free replacement
  • Higher relay rating (16A per channel)
  • Industrial-grade reliability with a larger installation footprint
  • Built-in 433MHz RF receiver for wireless sensors

Choose T16 if you need:

  • All DC loads but need a Tiny, space-saving footprint
  • High-density installation in compact electrical cabinets
  • Silent, high-speed switching (PWM via Free GPIO)
  • Wide 12–24V DC power input

I. Firmware Options & Features

Solution Ideal For Key Advantages
1. KCS Firmware (Recommended) Beginners / Zero-Code Users ✔ Auto-detects Home Assistant via MQTT (zero config)
✔ Works with Tuya App + Alexa/Google Voice Control
✔ Local IFTTT automation (no internet needed)
✔ 2-year free KinCony Cloud (official store only)
✔ Apple HomeKit support for Siri
✔ Supports Loxone Miniserver integration
✔ Multi-protocol: HTTP, MQTT, TCP, RS485 Modbus, Tuya
2. ESPHome Firmware Home Assistant Enthusiasts ✔ Full open-source customization
✔ Official ESPHome device support for B16
✔ Web UI + deep HA integration
✔ Full YAML examples available
3. Tasmota Firmware Open-Source Community ✔ Massive plugin ecosystem
✔ MQTT / Web control + rule engine
4. Arduino / ESP-IDF Custom Code Developers ✔ Full Arduino demos provided
✔ Supports MicroPython / ESP-IDF
5. Hybrid Setup (Best Practice) Advanced Users Tuya App (remote via internet) + Home Assistant (local via LAN) — Security + convenience

II. Technical Resources

Direct links to pin definitions, ESPHome configurations, Arduino demo source codes, and KCS firmware. All open-source and maintained on GitHub.

Resource Link
KCS Firmware kcs_firmware/B16/
Pin Definitions B16_pin_definition.md
Arduino Demos B16/ (11 examples)
ESPHome Configuration Official ESPHome B16 device page

III. Getting Started Guide

Step 1: Flash Firmware

We recommend using the Online Flasher — no driver installation required, works entirely in your browser. Alternatively, follow the Quick Start Guide for manual flashing with the ESP32 desktop tool.

Step 2: Connect & Configure

Power on the board, connect via Ethernet or Wi-Fi, and access the web configuration interface. For detailed configuration, see the KCS Firmware User Guide.

Step 3: Integrate

Enable MQTT auto-discovery in Home Assistant, or pair with Tuya App for voice control.

IV. Video Tutorial: How to Flash KCS Online

No Drivers Needed, No Complex Setup—Flash Directly within Your Browser in 1 Minute!

How to Flash KCS Online - Video Tutorial

Looking for software solutions for other products?

View All Product Software Solutions →
